Product Description:

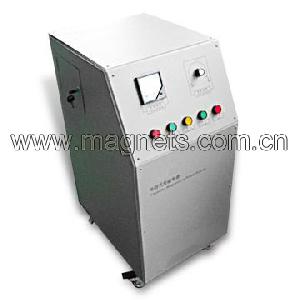

NCD 1100 series magnetizing and demagnetizing equipment features:
1. Charging voltage range: 1, 100V,
1, 500V to 2, 000V, 2, 500V
2. They are not only a good choice for magnetizing small sized magnetic materials, motors, tools, but also good for OD/ID magnetization on big sized magnetic products of high-performance and multi-poles, applicable for a power supply of 220V, 50Hz
3. Long service life, low cost
4. Its intelligent quantitative magnetizing power source, with computer control and inspection technology, it can quantitatively magnetize, demagnetize or decrease the magnetism of magnetic close looped piece accurately
5. It can keep an accurate control over the magnetic field intensity for magnetization, remanence can be kept less than 0.002T after accurate demagnetizing
6. Suitable for magnetizing ferrite magnets, small and medium size AlNiCo magnets, rubber magnets, small rare-earth magnets (F < 30mm), small motors and loudspeakers
Specification:
Model: NCD-1100/1-6
Power source: AC 220V, 50/60 Hz, 10A
Max. output current: 10000A
Charging time: 1 second
Output voltage: 50-1100V (continuously variable)
Capacitance: 600µF
Max. output energy: 363J
Main control element: SCR
Dimension: 350W×500D×800H
Weight: Approx.80kg
Many other models are available. For more detail info, please feel free to visit our website or inquire us at any of your convenience.
