Product Description:

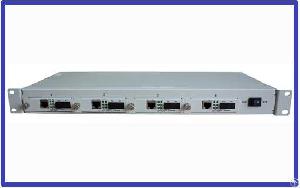

The four slot rack chassis media converter can be inserted in 4 media converter cards. The rack chassis
media converter provide SNMP network management function and full alarms display. The fiber media convert is a practical network solution which realize 10/100Base-TX to 100Base-FX fiber converter.
The fiber media converter can extend cable networks from 10/100Base-TX to 0-120KM fiber-optic network. It also provides the most popular connectors:ST、SC、MT-RJ、VF-45. The fiber media converter can support two power (one power for redundant0, which improving the network’s reliability.
Features
Support IEEE802.3u, IEEE802.3, 10Base-TX, 100Base-TX and 100Base-FX standard
Support 10/100M, full/half duplex auto-negociation
Support compulsive set 10M, 100M, full duplex, half duplex, which is convenient to connect CPE and protect previous invest when network upgrades.
Installed with standard rack 19”
It could realize media converter SNMP management. This is media converter module model name as BD-100M/CM04
can insert 4 BD-100M/CM04 cards, support double power AC+DC, one for redundant
support of SNMP via Management Ethernet port, remote management support of Web-based Network Management
support 802.1Q, vlan function
support LFP (link failure pass through)
Support hot-plug and could work (MIBF) over 100, 000hours, satisfies telecom grade operate standard and has full LED with complete work status.
Dimension: 482mm(w)×44mm(l)×179mm(h)
Power supply
AC power supply:AC110~264V/50Hz
DC power supply:DC36~72V
Power consumption: ≤20W
Environment requirement
Working temperature:-10℃~50℃
Storage temperature: -40°C~+70°C
Humidity: 5%-90% (no condensation)
