Product Description:

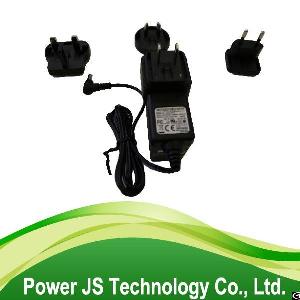

medical interchangeable plug wall charger 9v 2a power adapter
medical adapter
Jsmine1020-021
Output
Voltage : 5V - 58V
Output Current : 0.31A - 3.0A
Feature :
C.c / c.v mode
Super Mini Size and Easy Portable
Light & Convenient Plug In
Application :
Medical application
Universal AC input
High efficiency
Regulated output
Short circuit protection
Two housings selectable
Input/Output Specifications :
Input Voltage : AC 100 - 240V, 50 / 60Hz
Range Voltage : AC 90 - 264V, 47 / 63Hz
Output Power : 10 ~ 20W
Output Voltage : 5V ~ 58V
Over Voltage Protection : 120% min
Over Current Protection : All outputs protected to short circuit conditions
Short Protection : Auto Recovery
Load Regulation : ± 5% Variations from minimum to maximum output current
General Specifications :
Operating Temperature : 0 ~ 40°C
Storage Temperature : -20 to 85 °C
Operating Relative Humidity : 5% ~ 95% non-condensing
Withstanding Voltage : AC 3000V(Min),5mA(Max)
Insulation Resistance : DC 500V 100MΩ(Min)
Safety : UL60601 - 1 + CAN / CSA - C22.2 GS (EN60601 - 1) CE FCC CB LVD C-Tick MEPS CEC
