Medium Speed Wire-cutting Machine
Posted at: Offers to Sell and Export | Posted on: Thursday 14 November 2019 5:54 am | Poster last visit: Thursday 14 November 2019 | Targeted Countries: China
Product Category: Main
» Industrial Manufacturing and Processing Machinery and Accessories
» Wire machinery and equipment
» Wire working machinery and equipment and accessories
» Wire and cable cutting and terminal assembly equipment
» Medium Speed Wire-cutting Machine
Product Description:

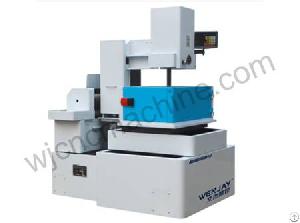

Medium Speed Wire-Cutting Machine
Machine tool type PD-50SE/ST PD-63SE/ST
Worktable Size (W*L) 1000×750mm
1170×830mm
Max trip of X, Y-axis of the worktable （Y×X） 630×500mm 800×630mm
Max cutting thickness 300mm 300mm
Max load weight of Economical Linear Cutting Machine Tool 800kg 1000kg
Max cutting efficiency 180mm²/min
Max processing current 7A
Optimum surface roughness First cutting Ra≤2.3um, second cutting Ra≤1.6um, third cutting Ra≤1.0um
Cutting accuracy Line≤±0.0025mm, taper≤±0.01mm
Hop accuracy 0.01mm /0-200mm 、 0.015mm/ 0-350mm 、 0.02mm/ 0-500mm
Max cutting taper of Medium-Speed Linear Cutting Machine Tool ±3°/80mm
Electrode wire diameter range (molybdenum wire) 0.12-0.25mm(standard configuration 0.18mm)
Driving mode X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation
Cutting fluid box configuration High pressure slow wire filtration, volume 100L
Cutting fluid ratio liquid mixed with pure water, concentration 8-12
Power consumption of complete machine ＜2KW
Power supply Three-phase four-wire 380VAC/50HZ
Host weight 2750kg 3450kg
Host outline size (L*W*H) 1850×1400×1800mm 2070×1655×2060mm
Packaging outline size (L*W*H) 2050×1600×1900mm 2340×2100×2160mm
More information please view here.
