Product Description:

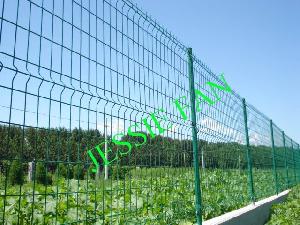

mesh fence
Name: fence
Wire diam: 2--6mm
Mesh: 50X50mm, 50X100mm, 75X150mm, 75X200mm, 100X200mm etc.
Width:
1--2.4m
Length: 1--3m
Surface: hot dip galvanized, PVC coated.
Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on. And produced from a variety of different gauge wires, and can produce welded wire mesh that is suitable for racking, pallets, gabions, fencing and more.
All our weld mesh panels receive the same care and attention during the production process, and are subject to our stringent quality control standards. Different mesh patterns are used for different welded wire mesh products . The weld mesh panels required for the fencing industry need to be of the highest quality, with strong welds that will not weaken or fracture. The mesh panels used in this industry can be light-weight as is the case with perimeter demarcation fencing, or heavy-weight such as in high usage sports fencing or security fencing.
Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels
stainless steel wire mesh panel sheets
Property:
Welded wire mesh panels enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance. Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating
Specification List of Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22, 23, 24
3/8" x 3/8" 10.6mm x 10.6mm 19, 20, 21, 22
1/2" x 1/2" 12.7mm x 12.7mm 16, 17, 18, 19, 20, 21, 22, 23
5/8" x 5/8" 16mm x 16mm 18, 19, 20, 21, 3/4" x 3/4" 19.1mm x 19.1mm 16, 17, 18, 19, 20, 21
1" x 1/2" 25.4mm x 12.7mm 16, 17, 18, 19, 20, 21
1-1/2" x 1-1/2" 38mm x 38mm 14, 15, 16, 17, 18, 19
1" x 2" 25.4mm x 50.8mm 14, 15, 16
2" x 2" 50.8mm x 50.8mm 12, 13, 14, 15, 16
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.8m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.
