Metal Floor Deck Roll Forming Machine

Posted at: Offers to Sell and Export | Posted on: Friday 29 November 2013 10:28 am | Poster last visit: Monday 13 February 2017 |

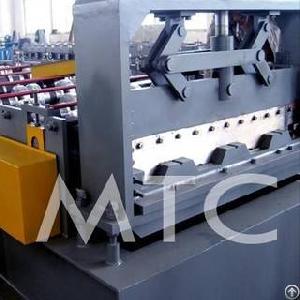

Product Photo:

metal floor deck roll forming machine

Similar Products Catalog:
Products Photos Catalog Metal Floor Deck Roll Photos Catalog

Product Description:

We are specialized in designing and building various steel floor decking roll forming machines, such



as close-type steel floor deck roll forming machine, 3-waves steel deck floor roll forming machine, 2-waves with ribs steel floor deck roll forming machine etc. In modern time, people prefers to use steel instead of stone or cement for construction projects, such as the steel floor decks, because it is more convenient to fill the concrete into other steel floor deckings than to use the stone floor

Technical Data for Main Parts on Steel Decking Floor Roll Forming Machine:

Uncoiler: Manual Uncoiler

Thickness of Material: 0.8mm—1.2mm

Effective Width:780mm

Coil Weight: 5 Tons

Coil OD: 1500mm

Coil ID:508--610mm

Feeding Guide OF STEEL FLOOR DECKING ROLL FORMING MACHINE:

2 Rollers to guide the material into the machine

Both ends of the flat roll adopt bearing structure.

Roll Forming Machine (STEEL DECK FLOOR ROLL FORMING MACHINE)

Roller Stations: 28-36 stations

Diameter of Shaft: 70mm

Material of Shaft: 45# steel.

Material of roller: 45#steel with electroplating treatment after quenching treatment.

Forming speed: 8-12m/min

Siding Plate: 36 “H” Steel (Thickness 18mm).

Transmission: 1.0” Chains-bracket.

Bearing Model: 6210

Main Power: 2x11KW;

Overall Dimensions: 11500mmx1500mmx1300mm

Weight of the machine: Appro.14 Tons

Cutting and Electrical Parts FOR STEEL FLOOR DECKING ROLL FORMING MACHINE:

Hydraulic Cutting: Automatically cutting according to the length and quantities the clients set on the touch screen

Hydraulic Power: 4KW

Material of Cutting Blades: Cr12 Steel

PLC Control Box: 700mmx1000mmx300mm

Computer Control System: Panasonic PLC.

Pressure of Hydraulic Station: ≧16Mpa



Company Contact:

MTCRollFormingMachine photo
Contact Name: Tony Tang
Company Name: Shanghai MTC Industrial Co., Ltd
Email: Email
MSN: Email
Skype: tangleitony
Tel: 86-21-67228332
Cell: 0086-18001958638
Fax: 86-21-6722-8302
Street Address: No.56 Fortune Hao Road,
Fengjing Town, Jinshan District, Shanghai
China
Website: http://www.coldrollformer.com
Website: http://www.rollformingdesign.com
Website: https://mtc-china.com
Member name: MTCRollFormingMachine
Country: China-CN China
Member Since: 26 March 2012
Total Leads: 244 MTCRollFormingMachine Import Export Business Leads
Business focus: Roll Forming Machine, Cold Roll Forming Machine, Cold Roll Former, Cold Forming Machine, Roll Forming Line, Insulated Sandwich Panel Production Line
