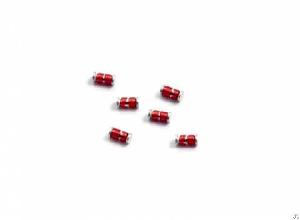

Mf59 Glass Shell Smd Ntc Thermistors
Posted at: Offers to Sell and Export | Posted on: Tuesday 22 December 2020 8:13 am | Poster last visit: Tuesday 22 December 2020 |
Product Category: Main
» Electronic Components and Supplies
» Passive discrete components
» Resistors
» Thermistor
» Mf59 Glass Shell Smd Ntc Thermistors
Product Description:
MF59 glass encapsulated NTC thermistor excellent long-term stability and reliability even when encountering
harsh environments and temperatures up 220°C. Excellent reliability and able to withstand temperatures up to 220°C, the LL-41 temperature sensor has glass encapsulation for applications where space isn’t an issue. Tape and reel is available for ease of use.
Shiheng Electronics Characteristic:
High temperature capability up to +220°C
Sealed glass package, capability of operating in the harsh environment
Surface Mount
Excellent long-term stability, high precision, broad range of resistance
Tape and reel packaging is available
Without leads, convenient for SMT automatic installation.
More information you can click here
Application:
Automatic work facilities (such as lap-top, copycat, printer and so on)
Digital equipment(such as mobile phone, PDA and etc.)
Rechargeable battery (lithium battery, ni-mh battery Temperature compensation of loops of instrument, integrated circuit, quartz crystal monofier and thermocouple).
The range of resistance under the rated zero power(R25): 0.1~1000KΩ
Glass Encapsulated Thermistor
The allowable tolerance of B value: ±0.5%、±1%
Dissipation factor: model A≥2mW/℃(in still air), model B≥1mW/℃ (in still air)
Thermal time constant: model A≤10S(in still air), model B≤ 5S(in still air)
operating temperature range: -55℃~220℃
Rated power at 25℃:model A≤10mW, model B≤5mW
The latest products relates to a chip-type glass-encapsulated negative temperature coefficient thermistor. It has a glass shell, a thermistor chip and two metal electrodes. The metal electrode is a SMT type, and thermistor chip is fixed in a glass shell. Two metal electrodes are installed at both ends of the glass shell. The metal electrodes at both ends are respectively connected to the electrodes on both sides of the resistance chip through a conductive body integrated with the metal electrode, and the conductive body and the resistance chip are encapsulated in a glass case at a high temperature. The utility model is electrically connected to the outside through a metal electrode, which requires less installation space, more convenient installation, no lead bending, and it is not easy to damage the product during installation.
What are NTC thermistors used for?
NTC thermistors are resistors with a negative temperature coefficient, which means that the resistance decreases with increasing temperature. They are primarily used as resistive temperature sensors and current-limiting devices.
