Micro Pore Optic Mpo
Posted at: Offers to Sell and Export | Posted on: Monday 30 May 2022 5:45 am | Poster last visit: Wednesday 1 June 2022 |
Product Category: Main
» Defense and Law Enforcement and Security and Safety Equipment and Supplies
» Security surveillance and detection
» Surveillance and detection equipment
» Night vision equipment
» Micro Pore Optic Mpo
Product Description:

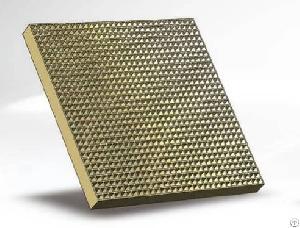

Micro Pore Optic (MPO) is a kind of grazing incidence optical element, which can focus high-energy rays,
such as X rays, ultraviolet light. MPO is a type of thin slice glass with porous structure. MPO is made up of millions of square shaped pores. The micro pore size is in micron scale and the surface of their inner wall has very low roughness. The shape of MPO can be divided into two classes: plane and sphere. The planar MPO can converge to the astigmatism, while the spherical MPO can converge to the parallel light. So far, in all known optical components of X ray, MPO not only guarantee the large field of view and high resolution, but also has the smallest volume and weight. In order to get the best focusing effect, we can coat surface of the micro pore’s inner wall with increasing reflective film, different application bands using the different film materials.
Specifications:
Pore size(microns):10, 20, 100, customized
Packing: square packed, radially packed
Boundary dimension: ≤50mm×50mm, ≤60mm, customized
Thickness(mm): 1, 2, 3, customized
Shape: plane, sphere
Radius of curvature(mm): 100, 150, 750, others tbd
Film materials: Aluminium, Nickel, customized
Square hole, Focus, Lightweight
Large field of view
High resolution
Applications:
Aerospace navigation
Deep-space detection
X-ray astronomy
Safety inspection system
Military reconnaissance
X-ray imaging/counting detection
Company Contact:
Contact Name: Alan Chen
Company Name: Ecor Tech Co., Ltd.
Email:
Tel: 8613580998381
Fax:
Street Address: No.106 Fengzhe Dong
Road, Guangzhou, Guangdong 510000
China
Website: https://www.usmartsensor.com
Member name: EcorTechCoLtd
Country:
China
Member Since: 29 May 2022
Total Leads: 24 EcorTechCoLtd Import Export Business Leads
Business focus: Image Intensifier Tubes, Infrared Thermal Imaging Camera Lens, Core, Detector, Laser Ranger Finder
