Mmcx Straight Crimp Jack For Earphone Shm020.117
Posted at: Offers to Sell and Export | Posted on: Wednesday 13 May 2020 2:04 am | Poster last visit: Wednesday 13 May 2020 |
Product Category: Main
» Electrical Systems and Lighting and Components and Accessories and Supplies
» Electrical equipment and components and supplies
» Electrical lugs plugs and connectors
» Flex connectors
» Mmcx Straight Crimp Jack For Earphone Shm020.117
Product Description:

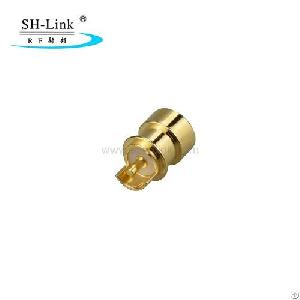

MMCX Straight Crimp Jack for Earphone SHM.020.117
TYPE MMCX RF Coaxial Connector is a Kind of Microminiature
Product Smaller than type MCX.Characteristic impedance is 50Ω.The characteristic of mmcx female coaxial connector is in Small Volume、Light weight、Convenient Connection and reliable.They are widely used in Connect with the RF Coaxial Cables, Transmission of RF signal, equipments or small-sized communications Network that are demanding on systematic volume and weight.by using surface mounting technology, earphone MMCX connector is suitable for mass instrument equipment production and producing on the assembly line.
Major technical characteristics
Temperature range -55—+155℃（PE Cable -40—+85℃）
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 170V r.m.s at sea level
Withstanding voltage 500V r.m.s at sea level
Contact resistance
Center contact ≤5mΩ
Outer contact ≤2.5mΩ
Insulation resistance ≥1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤15N
Disengagement force ≥6N
Voltage Standing Wave Ratio
Straight ≤1.25/3GHz
Right angle ≤1.43/3GHz
Durability(mating) ≥500(Cycles)
Company Contact:
Contact Name: Xiang Qiu
Company Name: Shenzhen Sihanming Technology Co., Ltd.
Email:
Tel: 075527339472
Fax: 0755-27339150
Street Address: C Building, Liyue
Industrial Park, 4th Industrial
Park, Fuyong Town, Baoan District
Shenzhen, Gaungdong 000000
China
Website: https://www.shmlink.com/
Member name: shmlink
Country: China
Member Since: 13 May 2020
Total Leads: 12 shmlink Import Export Business Leads
Business focus: Fakra Connector, Types, Rf Coaxial, Mmcx Connector, Rf Coaxial Adaptor Factory
Chat:
Verify: Safe Import Export Tips
TYPE MMCX RF Coaxial Connector is a Kind of Microminiature
Product Smaller than type MCX.Characteristic impedance is 50Ω.The characteristic of mmcx female coaxial connector is in Small Volume、Light weight、Convenient Connection and reliable.They are widely used in Connect with the RF Coaxial Cables, Transmission of RF signal, equipments or small-sized communications Network that are demanding on systematic volume and weight.by using surface mounting technology, earphone MMCX connector is suitable for mass instrument equipment production and producing on the assembly line.
Major technical characteristics
Temperature range -55—+155℃（PE Cable -40—+85℃）
Impedance 50Ω
Frequency range DC-6GHz
Working voltage 170V r.m.s at sea level
Withstanding voltage 500V r.m.s at sea level
Contact resistance
Center contact ≤5mΩ
Outer contact ≤2.5mΩ
Insulation resistance ≥1000MΩ
Center conductor retention force ≥0.28N
Insertion loss 0.18dB/1GHz
Engagement force ≤15N
Disengagement force ≥6N
Voltage Standing Wave Ratio
Straight ≤1.25/3GHz
Right angle ≤1.43/3GHz
Durability(mating) ≥500(Cycles)
Company Contact:
Contact Name: Xiang Qiu
Company Name: Shenzhen Sihanming Technology Co., Ltd.
Email:
Tel: 075527339472
Fax: 0755-27339150
Street Address: C Building, Liyue
Industrial Park, 4th Industrial
Park, Fuyong Town, Baoan District
Shenzhen, Gaungdong 000000
China
Website: https://www.shmlink.com/
Member name: shmlink
Country:
ChinaMember Since: 13 May 2020
Total Leads: 12 shmlink Import Export Business Leads
Business focus: Fakra Connector, Types, Rf Coaxial, Mmcx Connector, Rf Coaxial Adaptor Factory
Chat:
Verify: Safe Import Export Tips
