Product Description:
Description:

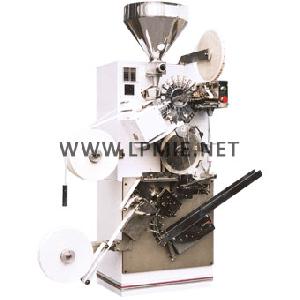

Tea-bag Packing Machine is an automatic precision machine use for packing broken tea
and similar herbs into small bags and realize fully automatic procedure including ration filling, heat-sealing of tea bag, pasting thread, linking tag, envelope sealing, dividing groups and counting tea bag. Our company has developed multi-types of Tea-Packing Machine (e.g. Model CCFD6, Model DXDC8I, Model DXDC8II, and Model DXDC8IV) which based on advanced technology in the domestic and overseas trade and has reached the same level of imported equipment; furthermore some performances have exceeded this level.
For the Tea-bag Packing Machine model DXDC8II,the envelope is sealed and packed with paper/polyethylene film which is keep fresh and dampproof.
Technical data:
1) Max. output: 90bags/minute
2) Max. dosage: 8cm3
3) Bag dimensions: 62.5mm X 50mm
4) Envelope dimension: 75mm X 65mm
5) Tag dimensions: 28mm X 24mm
6) Thread length: 210mm
7) Power Supply: AC380V Total Power: 1.65kW
8) Weight: 570KG Overall dimensions: 1.7m X 0.9m X 2m
9) Packing box dimensions: 1.236m X 1m X 1.855m
Packing material consumption
1) Filter paper: 7500bags/kg
2) Tag paper: 10000tags/kg
3) Thread: 20000bags/spool(4270m)
4) Vinayil: 70000bags/kg
5) Envelope paper: 1150bags/kg
6) Box counted according to the number of bags
