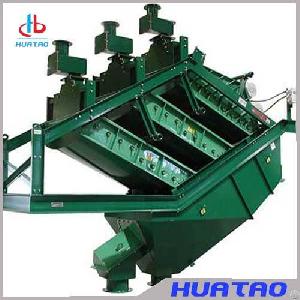

Multi-deck Vibrating Stack Sizer
Posted at: Offers to Sell and Export | Posted on: Friday 1 July 2022 1:21 am | Poster last visit: Friday 1 July 2022 |
Product Category: Main
» Material Handling and Conditioning and Storage Machinery and their Accessories and Supplies
» Material handling machinery and equipment
» Conveyors and accessories
» Vibrating conveyors
» Multi-deck Vibrating Stack Sizer
Product Description:
Specification:
Main technical parameters of Multi-deck Vibrating Stack Sizer
Dimensions: Width 1500mmX
Length 4892mmX4142mm
Machine weight: about 4 tons
Screening area: 7.3㎡
Screening inclination: 17.5°
Screening efficiency: 85~90%
Amplitude: 0.8~2mm
Maximum Capacity: 45T/h -120 T/h
Screen Panel Aperture: Minimum 0.043mm - 10mm
Decks : 1-deck stack sizer, 2-deck stack sizer, 3-deck stack sizer, 4-deck stack sizer, 5-deck stack sizer
Description:
1. The main body of the Multi-deck Vibrating Stack Sizer is riveted with rivets, which ensures the reliability and stability of the long-term operation of the equipment, and reduces the number of maintenance and labor.
2. The surface of the Multi-deck Vibrating Stack Sizer is treated with polyurea spraying technology as a whole, which increases the wear resistance and corrosion resistance of the equipment and prolongs the service life of the equipment.
3. With the self-developed polyweb urethane screen panel (minimum 0.043mm), the screen is not easy to be blocked, and five channels are fed at the same time, with large processing capacity and high screening efficiency.
Advantage：
1. Fine screen obtains larger screening capacity with smaller footprint.
2. Greatly improve the mill capacity and greatly reduce the power consumption per unit of ore grinding.
3. Minimize the over-powdering of useful minerals (mudification).
4. Improve metal recovery rate and reduce flotation reagent consumption.
5. Successfully applied to the sorting of metallic and non-metallic minerals.
More details contact us:
Huatao Group - Tufflex Screen
www(dot)tufflexscreen(dot)com
Email: maple(at)huataogroup(dot)com
Tel: 0086 0311 80690567
Mob: 0086 181 0331 7488
Company Contact:
Contact Name: Maple
Company Name: Shijiazhuang Huatao Import And Export Trade Co., Ltd
Email:
Tel: 13383110583
Fax: 0086 0311 68008382
Street Address: No.298 Zhonghua
North Street, Xinhua District,
Shijiazhuang 050065
China
Website: https://www.tufflexscreen.com
Member name: HUATAO
Country:
China
Member Since: 01 July 2022
Total Leads: 10 HUATAO Import Export Business Leads
Business focus: Vibrating Screen, Vibrating Screen Panels, Mineral Crushers, Beneficiation Machinery, Mineral Equipment Parts
Chat:
Verify: Safe Import Export Tips
Main technical parameters of Multi-deck Vibrating Stack Sizer
Dimensions: Width 1500mmX
Length 4892mmX4142mm
Machine weight: about 4 tons
Screening area: 7.3㎡
Screening inclination: 17.5°
Screening efficiency: 85~90%
Amplitude: 0.8~2mm
Maximum Capacity: 45T/h -120 T/h
Screen Panel Aperture: Minimum 0.043mm - 10mm
Decks : 1-deck stack sizer, 2-deck stack sizer, 3-deck stack sizer, 4-deck stack sizer, 5-deck stack sizer
Description:
1. The main body of the Multi-deck Vibrating Stack Sizer is riveted with rivets, which ensures the reliability and stability of the long-term operation of the equipment, and reduces the number of maintenance and labor.
2. The surface of the Multi-deck Vibrating Stack Sizer is treated with polyurea spraying technology as a whole, which increases the wear resistance and corrosion resistance of the equipment and prolongs the service life of the equipment.
3. With the self-developed polyweb urethane screen panel (minimum 0.043mm), the screen is not easy to be blocked, and five channels are fed at the same time, with large processing capacity and high screening efficiency.
Advantage：
1. Fine screen obtains larger screening capacity with smaller footprint.
2. Greatly improve the mill capacity and greatly reduce the power consumption per unit of ore grinding.
3. Minimize the over-powdering of useful minerals (mudification).
4. Improve metal recovery rate and reduce flotation reagent consumption.
5. Successfully applied to the sorting of metallic and non-metallic minerals.
