Multi-service Sdh / Mstp Multiplexer
Posted at: Offers to Sell and Export | Posted on: Tuesday 6 August 2013 5:51 am | Poster last visit: Friday 22 January 2016 |
Product Description:

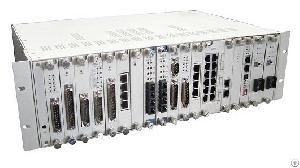

BD-MUX04-LMXE+ Multi-service SDH/MSTP multiplexer, 3U high 19” wide chassis with 19 slots.Can support
PCB, ethernet, E1s service cards, the uplink can be STM-1 or STM-4.
BD-MUX04-LMXE+ is a carrier-class, cost-effective, compact (only 3U high), STM-1/STM-4/STM-16 SDH/MSTP platform that is designed for application in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. It is derived from BD-MUX04-LMXE. The difference is that, BD-MUX04-LMXE+ has PCM function and interfaces while LMXE has only SDH and PDH interfaces.
BD-MUX04-LMXE+ is a card based compact SDH equipment, designed mainly as a gateway node between the core SDH network and a number of remote CPE boxes. It may also be used as a multi service SDH ADM node in a typical ring or mesh network. The 3U high 19” wide chassis of the BD-MUX04-LMXE+ has 19 slots, with 2 slots for the 1+1 power cards, 1 slot for network management card, 2 slots for aggregation(uplink) cards, and 14 slots for service(downlink) unit cards.
Uplink cards support STM-16/STM-4/STM-1 optical interface and STM-1 electrical interface. Service cards support E1/V.35/E3/DS3/FE/GE/FXO/FXS/4W/E&M/OW/RS-232/V.24/ RS-422/485/V.11.
Features:
1. Support up to STM-1/STM-4/STM-16
2. SDH/PDH/PCM all integrated
3. Large cross-connect matrix capacity is 96*96 high order VC-4 cross connection or 2016*2016 VC-12 or 96*96 VC-3 level full cross connection
4. Support 1+1 MSP, SNCP protection
5. Management channel can be DCC/E1/VC12
6. Clocking mode supports: internal clock / external clock / line clock / clock holdover
7. Ethernet service supporting GFP encapsulation, VC12 virtual concatenation and LCAS, P VLAN and 801.1Q VLAN
8. E1 BER tester is embedded
9. Support up to 110 Ethernet over 8*E1 (EoPDH or EoE) remote CPEs
10. Support up to 756 Ethernet over 1*E1 (EoPDH or EoE) remote CPEs
11. Support up to 110 Ethernet over VC-12 (EoSDH or EoS) remote CPEs
12. Online upgrading
13. Full redundancy design
Technical specification:
Index Performance Parameter
Max STM-1 4 aggregation + 28 tributary STM-1 optical interfaces
STM-4 4 aggregation + 4 tributary STM-4 optical interfaces, SFP
STM-16 4 aggregation STM-16 interface, SFP
Connector SC/PC or FC/PC or SFP
Spec. S-1.1, S1.2, L-1.1, L-1.2, S4.1, S4.2, L4.1, L4.2, S16.1, S16.2, L16.1, L16.2
Single fiber bi-directional interface can be optionally supported
PDH interface Max E1 336 E1
Max E3/DS3 14 E3/DS3
Ethernet Interface 10/100Base-Tx or 100Base-Tx, Comply with IEEE 802.3
Max FE/FX Interface 56 FE ports (14 FE01 or FE02 cards support)
Encapsulation Comply with ITU-T G.7041 (VCAT, GFP, LCAS)
GE(electrical/optical) 14 GE ports(14 GX01A/GX02A)
V.35 Max Interface 28 V.35 interfaces (framed or unframed) DCE/DTE
PCM interface Max voice interface 140 FXO/60 FXS/140 4W/60 magnet telephone/60 hotline
Max asynchronous interface 224 RS-232/ 28 RS422/ 224 V.24/ 28 V.11
Cross-connect Capacity Uplink STM-1 High order 20×20 VC-4s
Low order 1260×1260 VC12s
Uplink STM-4 High order 32×32 VC-4s
Low order 2016×2016 VC-12s
Uplink STM-16 High order 96×96 VC-4s
Management Interface 10/100 Base-T (can be cascaded)
EOW interface Standard socket RJ11
Physical Dimension(H/D/W) 3U: 136 × 240 ×440 (mm)
Power Supply -48V DC / ~110 V AC/ ~220V AC
Power redundancy supported
Consumption ≤100W
Cooling system fan embedded
Environment Temperature 0°C~50°C
Humidity ≤90 %(non-condensing)
Weight ≤8 kg
Company Contact:
Contact Name: Dora
Company Name: Shanghai Baudcom Communication Device Co, .ltd
Email:
Tel: +86 21 37709251
Fax: +86 21 37709302
Street Address: Room1301, No45, Lane
1505, Mei Jia Bang Road, Song Jiang
District, Shanghai, Shanghai City,
China 201620
China
Member name: ShanghaiBaudcom
Country:
China
Member Since: 09 July 2013
Total Leads: 140 ShanghaiBaudcom Import Export Business Leads
Business focus: Telecommunications, Communication Devices, E1 Converter, Fiber Midea Converter
Chat:
Verify: Safe Import Export Tips
