Product Description:

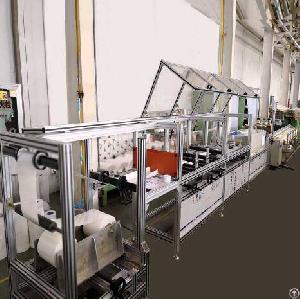

Mylar Film Forming Machine
Product Description
Mylar forming machine is used for forming the polyester
film. The procedures include feeding, pre-forming, heating, forming, cutting and discharging etc. Conductor width, heating temperature, cutting length and formed quantity etc can be set on machine in advance so the equipment can adjust automatically.
The key advantages of this machine include formed round corners are smooth and pointless, automatic feeding and cutting, saving materials and labor saving.
Kiande Specialized in manufacturing and customizing busbar production machines including Busbar Automatic Production Line, Automatic Assembly Machine, Automatic Busbar Assembly Line, Semi-Automatic Assembly Line, Busbar Manual Assembly Machine, Two-Piece Manual Assembly Machine, Busway System Inspection Line, Busbar Manual Inspection Machine, Busway System Packaging Machine, Busbar Manual Packing Machine, Busbar Profile Cutting Machine, Distribution Board Production Line, Switchgear Production Line, Distribution Box Switch Box Production Line, Switchboard Assembly Line...
No. Parameters
Model No. KD-CXJ/D(E)-250
Thickness of Mylar 0.10mm~0.2mm
Width of Mylar 30mm~250mm (Other size can be customized.)
Double Layer Forming Optional
Adjustment of Mylar Thickness Digital (High Grade Type) Manual (Economic Type)
Control Mode Digital Control
Temperature Control Automatic Constant Temperature
Power 380~415VAC 4kW
Size of Equipment L6000mm*W1500mm*H800mm
