Product Description:
straddle connector Description:

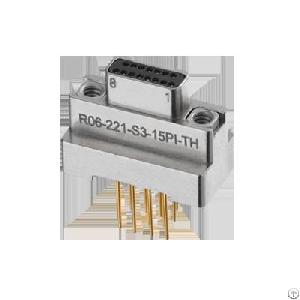

Sunkye Nano straddles flexible SMT connector series features
gold alloy Twist Pin contacts.
Contacts number: 9, 15, 21, 25, 31, 37, 51, 65, 69.
The connector is free mounted, not fixed, and usually mated with a receptacle that has a nut.
Recommended JC (straight slot screw) types of screws.
Tight by a miniature straight screwdriver.
Choosing the JC1 (hex) type of screws, tight by 1.27mm sub tense screwdriver.
PC tail solder on flexible PCB, PCB thickness is 0.25MAX.
Working temperature environment: -55℃~+125℃.
Machine life: 200times.
Nano Connector hardware includes jackscrew or female threaded shells. Applications include down-hole electronics, missile systems, launch vehicles, and satellites. M32139 type dual row nano miniature rectangular connectors. Flex assembly, PCB thru-hole, surface mount, straddle mount or back to back cable configurations. Connector savers and EMI protective cover are also available. Nano miniature dual-row plug and receptacle connectors are offered in titanium, stainless steel or aluminum shells. Connectors are configured with 0.635mm contact spacing and DWV rating of 250 volts AC. Up to 11 contact layouts are available with three wire type options including Ultra lightweight insulation with gold-coated high strength copper; extruded PTFE insulation with silver coated copper, and cross-link modified ETFE insulation with high strength silver coated copper.
