Product Description:

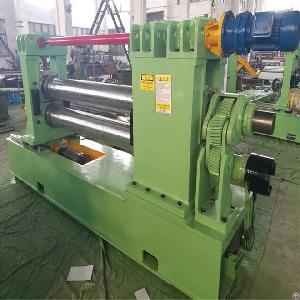

3X600mm Narrow Width Coil Slitting Line
Narrow Width Coil Slitting Line, Silicon Slitting Line, 3 Mm
Thick Sheet Slitting Line
Model NO.:WXLJ-3X600mm Narrow Width Coil Slitting Line
The serial lines are used for different sizes coils with different thickness to be slit into special strips as requirements .These products are for roll mill, HF tube mill, cold forming machines, punching &press machines etc. Raw material is CR material, HR material, silicon steel, S.S steel, Color steel, AL, PPGI ….;
Composed of coil car-un-coiler – guiding &pinch device –slitter, side-guiding device –looping –tensioner –scrap –re-coiler –recoil car etc .
Technical Parameter
Coil Material CR Coils, HR Coils, S.S Steel Coils, GI Coils, AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 0.2~1.8mm 0.3~3.0mm 0.8~4.0mm 1.0~6.0mm
Line Speed 0~150/200m/min 0~150/200m/min 0-120/150m/min 0~80m/min
Coil Weight ≤10T(15T) ≤20T(25T) ≤25T(30T) ≤25T(30T)
Coil I.D φ508mm φ508mm φ508, φ610, φ760mm Φ508, φ610, φ760mm
Coil O.D ≤φ1600mm ≤φ2000mm ≤φ2000mm ≤φ2000mm
Strip Width ≥15mm ≥25mm ≥25mm ≥30mm
Number of Strip 5~15 8~20 5~15 4~15
Slitting Accuracy
Blade shaft ±0.1mm
Ф220 ±0.15mm
Ф240mm ±0.25mm
Ф240mm ±0.3mm
Ф260mm
