Nesting Centre Cutting Machine Nc9-z12

Posted at: Offers to Sell and Export | Posted on: Wednesday 7 April 2021 6:53 am | Poster last visit: Wednesday 7 April 2021 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Raw materials processing machinery » Machinery for working wood and stone and ceramic and the like » Cutting machines » Nesting Centre Cutting Machine Nc9-z12

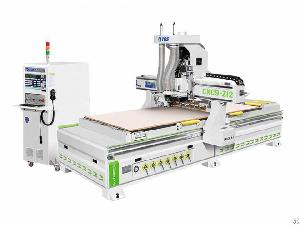

Product Photo:

nesting centre cutting machine nc9 z12

Similar Products Catalog:
Products Photos Catalog Nesting Centre Cutting Photos Catalog

Product Description:

X stroke 1230mm

Y stroke 2450mm


Z stroke 200mm

Max. Feeding height 70mm

Working precision 0.15mm

Repositioning

resolution 0.05mm

Taiwan syntec 60a system

Syntec

SYNTEC drive with absolute encoder

Max. no-load speed 80000mm/min

Max. cutting speed 15000-25000mm/min

Spindle 9KW HITECO air cooling spindle with auto tools changing

Spindle speed 0-24000r/min

X axis（BORCH precise finish inclined rack）

Y axis（BORCH precise finish inclined rack）

Z axis（TAIWAN TBI High precision ball screw）

30mm SLM dust-proofing linear guide way

TAIWAN FASTON planetary reducer

Taiwan airtac

5pcs，X:2pcs Y:3pcs

TAIWAN DELTA 11KW inverter

G-CODE, PLT, UG, ENG, HPGL etc.

Alpha Cam, Autocam, TYPE3, JD, UG, CAD etc.

Automatic central lubrication system

Heavy high rigidity body frame

AC380V/3PH/50Hz

Power 5.5kw

COOLING TYPE Air cooling
