Product Description:

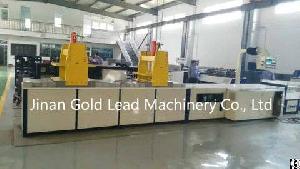

FRP BLG-8030 20T pultrusion machine with touch screen
Machine characteristics:
1.Touch screen controlling
system, it can display heating temperature, traction speed and traction force. Also the temperature and traction force can be adjusted on the touch screen. Easy operation for the workers.
2.Variable piston pump on hydraulic system equips with oil filter with the function of oil temperature alarm.
The machine includes:
1 Roving creels 2pcs
a.Ivory paint, combined structure, easy accessibility
b.Rolls capacity: 70-100 5 layers
c.Dimension: 2000mm(L)x600mm(W)x2000mm(H)
2 Resin bath 1pc
a.Capacity: 50kg
b.Bath dimension: 1030mm(L)x720mm(W)x190mm(H)
c.Dimension: 1110mm(L)x810mm(W)x900mm(H)
3 Calibrating table 1pc
a.Size of mold table: 970mm(L)x910mm(W)x20mm(H)
b.Length of mold: 900mm
c.Adjustable height of mold table: 0-80mm
d.Temperature control zones: 8 (max control power 20KW, heating plated customer made)
e.Dimension: 4070mm(L)x1150mm(W)x1750mm(H)
4 Traction machine 1pc
a.Clamping envelope: 800mm(W)x300mm(H)
b.Max traction force: 200KN
c.Up and down journey of clamping cylinder: 400mm
d.Max clamping force of traction heads: 200KN
e.Traction speed: 0.1m-1.0m/min
f.Max traction to-and-fro journey: 500mm
g.Clamping journey: 100mm
h.Traction cylinder: HSG ∮125X500
i.Clamping cylinder: HSG ∮125X500
j.Oil pump power: 380V 50HZ 2x3KW
k.Cooling water pump power: 220V/50HZ 1.5KW
l.Dimension: 4800mm(L)x1150mm(W)x1750mm(H)
5 Cutter (High precision type) 1pc
a.Cutting range: 800mm(W)x240mm(H)
b.Rotation speed of cutting blade: 1450rpm
c.Cutting power: 3KW
d.Cutting method: diamond blade, pneumatic clamping, cross cutting
e.Diameter of cutting blade: ∮600mm/∮50mm (inner)
f.Dust collection: vacuum cleaner 1.5KW
g.Cutting tracing journey: 700mm
h.Cutting mode: auto/manual
i.Fix-length cutting mode: limit switch
j.Dimension: 2700mm(L)x2100mm(W)x1800mm(H)
k.With linear bearing to ensure the high cutting precision
6 Creel for finished products 1pc
a.Structure: square tube and steel plate welded
b.Standard configuration: platform type
c.Dimension: 6000mm(L)x550mm(W)x900mm(H)
Control system
a.Touch screen: 8” Omron, Japan
b.Temperature controller: Omron, Japan
c.Solid-state relay: Omron, Japan
d.PLC: Omron, Japan
e.Electrical components: Huyu, Zhejiang. China
Hydraulic system
a.Oil pump: Yongjing, Shanghai
b.Variable piston pump 15C3RGE-10
c.Stacked hydraulic change valve, pressure regulating valve: NORTHMAN, Taiwan, SWH-G02
d.Precise speed regulating valve: DAKIN, Japan JFC-G02
e.Each traction head has separate hydraulic system
f.Oil temperature alarm and filter blocking alarm function
