New Condition Qka1226 Pipe Thread Lathe Machine Made In China

Posted at: Offers to Sell and Export | Posted on: Monday 28 August 2017 8:48 am | Poster last visit: Monday 25 March 2019 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Metal cutting machinery and accessories » Lathes and turning centers » Automatic lathe or chucking machine » New Condition Qka1226 Pipe Thread Lathe Machine Made In China

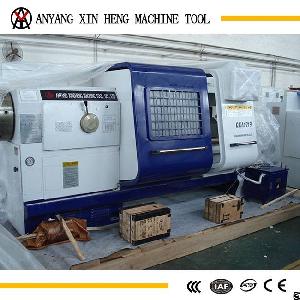

Product Photo:

condition qka1226 pipe thread lathe machine

Similar Products Catalog:
Products Photos Catalog Condition Qka1226 Pipe Photos Catalog

Product Description:

New condition pipe thread lathe machine made in china

QK series lathe are economical CNC horizontal


lathe, which are not only suitable for oil pipe thread turning and pipe thread turning, but also widely used in all walks of life such as automotive, petroleum, military and other mechanical processing.

Standard Configuration :

1. CNC System: FANUC Series 0i-mate-TD/0i-TD

2. X, Z motor with Fanuc feed servo motor 12Nm, 22Nm

3. The use of domestic vertical 4-station electric turret240X240

4. Guide rail width: 550mm

5. Spindle manual 3 files, hydraulic automatic 6 files, a total of 16 speed

6. Spindle through hole 130mm

7. Double standard three-jaw manual self-centering chuck 380

8. Without center frame, with knife holder

9. The main hydraulic components used in Shanghai Xinxiang Electrical and Mechanical Services

10. Semi-protective

Optional configure:

1. Electric box without air conditioning, such as with an increase of 450$

2. Without chip conveyor, such as with chip conveyor, according to the specific manufacturers to increase prices

3. Suitable for oil and similar industries processing all kinds of pipe class parts

4. If the basic configuration changes according to the machine bed attachment price list increase or decrease

5. The price is suitable for the German Siemens 808 control system

Technology:

Capacities:

External Dia. of pipes:260mm

Swing over bed: 1000mm

Swing over carriage: 630mm

Max.length of workpiece: 1500-5000mm

Max.turning length: 1300-4800mm

Pan of guideway: 755mm

Spindle:

Spindle nose: A2-20

Taper hole of spindle:1:20

Spindle bore: 275mm

Top taper of spindle: 6#

Range of spindle speed:400~320r/min

Chuck:3-JAW 630/800mm

Feed

Min. feed of X/Z-axis: 0.001/0.001mm

Rapid of X/Z-axis: 3/6m/min

Max. travel of X: 390mm

Turret

Turret type: V4 240

Section of tool shank: 40X40mm

Indexing repeatability: 0.008mm

Max.cutting force:19600N

Professional manufacture pipe threading lathe 30 years

Tailstock

Dia. of tailstock:100mm

Travel of tailstock:250mm

Taper hole of tailstock: Morse5

Others

Main power: 30kw

Accuracy: IT6~IT7

Roughness: RA1.6

Length: 2912-5177mm

Width: 1800mm

Hight:1850mm

CNC system: FANUC Series 0i-mate-TD/0i-TD

Packaging & Shipping:

Quality is our culture. With us your money in safe your business in safe.

Solid Seaworthy Wood Box Package with Steel Belt.

Save space as much as possible for container loading.

CARTONS - Export worthy Packing



Company Contact:

No member photo
Contact Name: Lisa
Company Name: Anyang Xinheng Machine Tool Co., Ltd.
Email: Email
Tel: +8613323626105
Fax:
Street Address: Industry Park,
Pingyuan Road, Hi-tech Zone Anyang,
Henan 455000 China
Website: http://www.lathemachinetool.com
Member name: ayxhmt
Country: China-CN China
Member Since: 28 August 2017
Total Leads: 60 ayxhmt Import Export Business Leads
Business focus: Cnc Lathe Machine, Conventional Lathe Machine, Heavy Duty Lathe, Pipe Threading Lathe, Spherical Lathe, Mini Cnc Lathe
