Product Description:
new line array pa speaker system TL210

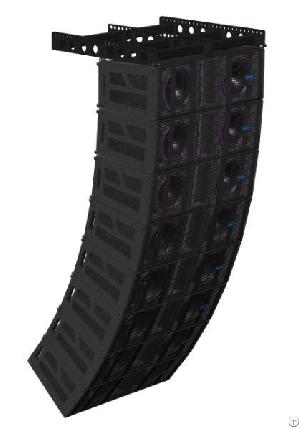

The TL210 is a medium sized vertical line array system. The specified
conception
is based on the latest electro-acoustical concepts and theoretical
basics.
The TL210 shall be an active 3-way loudspeaker system, the low section with
one 10-inch driver and one 10-inch midrange driver
symmetrically mounted onto the plane baffle, the HF section with
2x1.75-inch diaphragm compression drivers(44.4mm voice coil)
. As a full range system, the frequency response shall be
80 Hz to 20 kHz( 10 dB).
The enclosure shall have a trapezoidal shape. Cabinet construction shall
consist of 18 mm birch plywood with aluminum plates on the sides. The front
of the enclosure shall be protected by a black epoxy-coated, 1.8 mm thick
steel grille.
Loudspeaker enclosures shall be installed using a dedicated rigging bumper
and accessories. The enclosure shall have an integral rigging system that
allows arrays to be assembled with variable angles between enclosures up to
a maximum of 12 degrees.
