Oem 1-1 Ratio Right Angle Gearbox

Posted at: Offers to Sell and Export | Posted on: Saturday 21 July 2012 5:55 am | Poster last visit: Thursday 19 May 2016 |

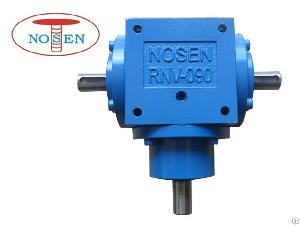

Product Photo:

1 ratio right angle gearbox

Similar Products Catalog:
Products Photos Catalog Ratio Right Angle Photos Catalog

Product Description:

Models:

Rnv-065, rnv-090, rnv-120, rnv-160, rnv-200, rnv-260


Configurations:

spiral bevel gears, bearings,

housing, oil sealing, input and output shafts etc.

Features:

1. Function: right angles change transmission directions

2. 2 ways, 3ways, 4 ways gearboxes are available

3. Compared to worm gear reducer, spiral bevel gear box is of flexiable operational capacity, high transmission torque and save more money.

4. Speed Ratio: 1:1, 2:1, 3:1, 4:1, 5:1. Special ratio, following clients' orders

5. Transmission Efficiency: 95%

Materials:

1.Spiral bevel gears: alloy steel, case hardened, be of high rigidity and wear risistance

2.Bearings: taper roller bearings, bear larger torque

3.Gearbox: cast iron, six faces of gearbox are machined by milling machine, gloss surfaces

4.Input&Output shaft: S45C, heat treated

Use Details:

Max Revolutions: 1450 rpm

Ambient Temperature: -20șC~+80șC, special temperature, consult our engineers

Noise Level: less than 80 dB

Temperature Level: less than 50șC

Gear Oil: HD320~680
