Off-axis Big Aperture Paraboloid Lenses Combination

Posted at: Offers to Sell and Export | Posted on: Tuesday 11 August 2020 8:06 am | Poster last visit: Tuesday 11 August 2020 |

Product Category: Main » Manufacturing Components and Supplies » Industrial optics » Optical device accessories » Optical coatings » Off-axis Big Aperture Paraboloid Lenses Combination

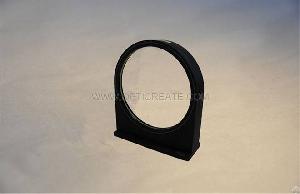

Product Photo:

axis aperture paraboloid lenses

Similar Products Catalog:
Products Photos Catalog Axis Aperture Photos Catalog

Product Description:

Off-Axis Big Aperture Paraboloid Lenses Combination

Lenses Combination Manufacturer


Product Details

The

traditional manual method is adopted to process the lager diameter paraboloid and hyperboloid lens with BK7  (ZK N4 or Zerodur) material, use knife-edge instrument for test, with high processing accuracy,  and the diameter can be within 900mm.surface accuracy could be less than 1/40 lambda. Through high precision parallel light tube, combined processing method to ensure the image quality of primary and secondary mirror combined system. With knife-edge instrument, the spot size can be controlled within 0.02mm. Coaxial Lenses Combination can also process non-focal beam expansion system, that is, Parallel light comes in and parallel light comes out.Expansion can be designed according to customer requirements.

Through the way of sleeve, the high precision off-axis mirror combination could be obtained.

Off-Axis Aspheric Mirror Material BK7, ZK N4, Zerodur ect.

Diameter tolerance +0.0/-0.15mm

Diameter of primary and secondary mirror ≤900mm

Structure of Primary and secondary mirror Paraboloid+ Paraboloid / Paraboloid +Hyperboloid

Type Primary and secondary mirror imaging/Afocal system

Focal length tolerance ±2%

Clear aperture ≥90%

Light spot 0.02mm

Surface Quality 60-40

Bevel 0.25 mm × 45°

Coating Metal reflection coating/Dielectric reflection coating
