Product Description:

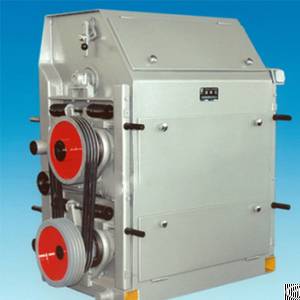

Oil Processing Machine - Crusher Machine
Oil Processing Machine - Crusher Machine is a crushing machine
equipment that use the double tooth roller for granular material on two consecutive crushing processing, in order to meet the requirement of process.This Oil Processing Machine - Crusher Machine is suitable for the crushing processing of soybeans, peanuts and soybean meals and etc.
Main Features
1) High yield, crushing effect is good;
2) Stable and reliable performance;
3) Stable and reliable performance.
4) Strong operability.The roller with adjustable clearance, and the prevent the collision of the roller without gap;
5) Simple structure and use safely, repair and maintain conveniently;
6) Long service life.
7) Especially for YS35 crusher machine using single motor drive, square shaft seat, and it can realize synchronous adjustment of roller.
Main Technical Parameters
Model Capacity (T/24H) Power (KW) Crushing Size (Section) Powder Degree (%) Dimension (cm) Weight (KG)
YS25x100 160-200 11*2+0.55 1/4 - 1/8 ≤4 190x78x191 3000
YS25x125 220-260 15*2+0.55 1/4 - 1/8 ≤4 220x78x191 3500
YS30x100 260-280 15*2+0.55 1/4 - 1/8 ≤4 195x90x213 4300
YS30x125 300-320 18.5*2+0.55 1/4 - 1/8 ≤4 223x90x213 4800
YS35x150 450-500 55+0.75 1/4 - 1/8 ≤4 260x133x211 8000
YS35x190 980-1000 90+1.1 1/4 - 1/8 ≤4 300x133x211 10000
YS40x100 280-300 15*2+0.75 1/4 - 1/8 ≤4 205x120x231 6000
YS40x125 320-350 18.5*2+0.75 1/4 - 1/8 ≤4 230x120x231 7000
YS40x150 400-500 22*2+0.75 1/4 - 1/8 ≤4 255x120x231 8000
Yongsheng is specialized in producing grain and oil processing machinery and equipment in China. Such as Oil Expeller Machine, Oil Processing Plant, Cooking Oil Preliminary Pressing Machine, Oil Mill, Corn oil processing Line, Vegetable Oil Solvent Extraction Plant etc. All the equipment with high quality
