Product Description:

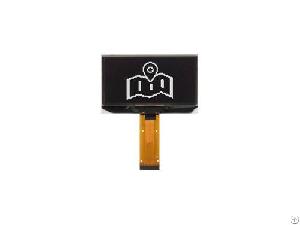

Model: OE12864A0
Resolution: 128 x 64
Power supply: 2.8V
Interface: 8-bit Parallel, SPI, I2C
Ic:
ssd1309
Duty: 1/64 Duty
Mechanical Data:
Full color OLED enable to enrich and upgrade the display performance, with high brightness, good contrast ratio, low power consumtion as well as thin and light weight, it will be your right choice on consumer products.
Item Dimension(m*m)
Module dimension: 60.50 x 37.00
View area: 57.01 x 27.49
Active area: 55.01 x 27.49
Pixel size: 0.43 x 0.43
