Product Description:

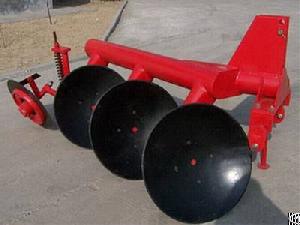

Introduction of One-way Disc Plough
Amisy Farming Machinery manufactures and supplies our customers
with quality and efficiency disc plough which consists of 3 types--one way disc plough, reversible disc plow and driving disc plough. Our one way disc plough is mainly used for tillage on dry cultivated or fallow land, especially on high yield manure land, wheat and rice stubble fields. They have the characteristics of small resistance, easy operation, lowest oil consumption, etc.
By adopting good qualities of the same kind abroad, Amisy series fully comply with international standard. It is of combined structure, of which the main body is integral rigid rake frame and configured with hydraulic pressure rubber tire, spring leveling mechanism and special sealed rolling bearing. Reasonable structure brings you excellent working performance!
Features of Standard One Way Disc Plow
1.Compared with other kinds, it only can work on one side without changing its own direction.
2.It has strong ability to crack and fill earth. After harrowing, the surface is flattening and soil is raveling.
3.It is of small traction and low oil consumption, which can completely satisfy modern agricultural requirements.
4.Its turning radius is small and easy to maintain, which will bring good user experience.
Working Principle of One Way Disc Plough
When this plow is working, the discs roll forward under the action of counter-force from earth and open the soil with its cutting edge. The soil block gradually becomes loose an broken in the moving process along the concave side of these discs and is turned into furrow finally. Every disc is equipped with soil scrapper, which keeps the concave side clean and makes soil block move in the right direction. Besides, it has a special tail wheel whose function is to undertake the lateral reaction of soil to these discs and ensure the plow’s stability in the working process.
Technical Specification of One Way Disc Plow for Sale
Model
Unit
1lyq-315
1lyq-320
1ly-325
1ly-425
1ly-525
1ly-625
1ly-530
Working width
m
0.45
0.6
0.75
1.0
1.25
1.50
1.5
Working depth
mm
180
200
250
300
Qty. of disc
pc
3
4
5
6
5
Dia. of Disc
mm
450
510
660
710
Thickness of disc
mm
6
Weight
kg
160
180
430
520
600
700
620
Linkage
Three point-mounted
Matched Power
hp
10-14
18-25
35-60
50-75
65-90
80-100
75-100
