Product Description:

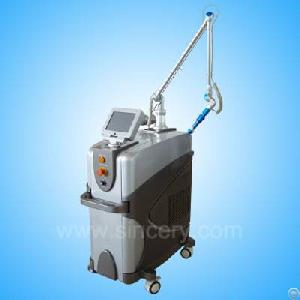

BS-YAG1 strong Q-switch ND: YAG laser equipment is sourced by ND: YAG medical laser. With multiple levels
amplifying, the laser beam carries high energy which can be used in many fields as tattoo removing, freckle removing, etc. The affluent energy design ensures the energy density and treatment effect, at the same time many improvements are integrated to eliminate as far as possible the damage caused by laser to the people under treatment, and surrounding environment.
The pigmentation of body can be effectively broken up into pieces and removed by laser instantaneous high energy. Laser at certain wavelength can penetrate epidermis to lesion tissues within the extremely short time, then break up the corresponding chromospheres immediately. The corresponding pigment expands rapidly and explodes into pieces. Part of the pigment will be bounced out from patient's body at the moment, while the other part the pigment will split into the tiny granules that can be engulfed by phagocytes of the body. After the digestion of phagocytes, it can be excluded from the lymphatic system. The pigment of the injured tissues gradually becomes shallow until disappears, while no injured trace will be left on the peripheral normal tissues, for they will not absorb the laser of the fixed wavelength.
Features:
Dual wavelength ND: YAG laser: 1064nm and 532nm.
Support high energy Q-switch output mode, with max output at 800m joules, and pulse width down to 6ns
Support long pulsed output mode for skin rejuvenation and wrinkle removal
Electro-Optic Q-Switched YAG Laser source, with very short pulse width.
Optical beam transmission: 7 joints arm light conducting arm and high transmission efficiency.
Automatically adjust the laser fluence according light spot size settings.
Technical Specification:
Laser TypeEO Q-switch ND: YAG Laser
Wavelength1064 nm / 532nm
Single Pulse Energy FluenceMax. 800 mJ at 1064nm
Max. 400 mJ at 532nm
Laser Pulse WidthMinimal 6 ns (Q-switch mode)
300 us (Long pulsed mode)
Repeat Frequency1 10 Hz
Spot SizeDiameter 2 7 mm adjustable on handpiece
Energy density displays on LCD simultaneously
Aiming BeamRed Diode Laser
Laser Delivery7 joints articulated light guiding arm, with power density adjustable pole
