Optical Wedge Prism / Dove Prism

Posted at: Offers to Sell and Export | Posted on: Thursday 28 October 2010 5:58 am | Poster last visit: Wednesday 4 November 2015 |

Product Category: Main » Manufacturing Components and Supplies » Industrial optics » Lenses and prisms » Prisms » Optical Wedge Prism / Dove Prism

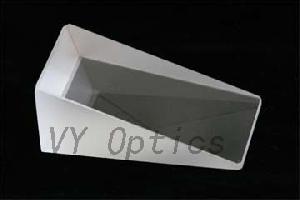

Product Photo:

optical wedge prism dove

Similar Products Catalog:
Products Photos Catalog Optical Wedge Prism Photos Catalog

Product Description:

Wedge prism is an optical element having plane-inclined surfaces, usually the faces are inclined toward



one another at very small angles. Wedges divert light toward their thicker portions.

Wedge prism is commonly used in laser system for eliminating the reflections from the second surface or for beam steering. Standard and broadband antireflection coatings are available upon request, see our standard optics components below.

Specification of our wedge prism as follow:

*Material:BK7 or(JGS1 JGS2 JGS3)

*Dimension Tolerance:+/-0.20mm to +0.01/-0.01mm

*Thickness Tolerance:+/-0.20mm to +/-0.005mm

*Surface Quality:80-50 to 10-5 Scratch/Dig

*Surface Flatness: at 632.8nm lambda to lambda /20 per 25mm

*Clear Aperture:80% -- 100%

*Angle Tolerance:3-5 minutes to 3 second

*Chamfer:0.3+/-0.20mm *45degree

*Coating Optional



Company Contact:

No member photo
Contact Name: Yvonne
Company Name: VY Optics Photoelectric Technology Co., Ltd.
Email: Email
Tel: 86-431-84631230
Fax: 86-431-84631230
Street Address: Xingye Street Office,
Kuancheng Area, Changchun 130000 China
Website: https://www.vyoptics.com
Member name: vyoptics
Country: China-CN China
Member Since: 28 October 2010
Total Leads: 14 vyoptics Import Export Business Leads
Business focus: Optical Lens, Cylindrical Lens, Camera Lens, Linbo3, Mirror, Fisheye Lens, Wide Angle Lens, Telephoto Lens, Rod Lens, Ball Lens, Spherical Lens, Windows
