Product Description:

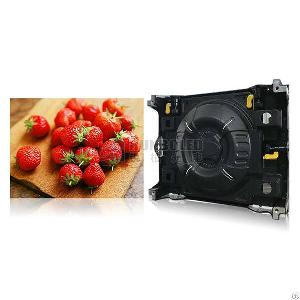

P1.667 Indoor Small Pitch LED Screen for fix installation
Indoor Transparent LED Display
P1.667 Indoor
Small Pitch LED Screen is widely used in public transportation, fire stations, metro stations, police safety supervision room, TV station and related areas. Seamless assembly on the whole screen, dot-to-dot fine display, ensuring accurate display of digital signals, graphic signals and text information. Massive video surveillance and key video surveillance triggers combined with led dis
Features of our Indoor Small Pixel Pitch LED Display:
1. Seamless assembly on the whole screen, dot-to-dot fine display, ensuring accurate display of digital signals, graphic signals and text information.
2. Massive video surveillance and key video surveillance triggers combined with led display to meet daily calls and emergency command requirements.
3. Adopting high quality LED lamps like kinglight or nationstar and patent PCB design for the screen, it essentially ensures long lifetime of the product.
4. We make a special treatment of anti-electromagnetic wave and adopt distribution scan and modular design for the screen and it works more reliable and stable.
5. Non-linearity correction technology makes the led screen image exquisite and clear, video images vivid and fidelity.
6. Precision design of module frame parts controls the deviation of neighbouring modules within 0.1mm and has an excellent flatness without mosaic.
7. Standard steel cabinet design makes the easy installation of the led display.
8. Adopting same levels of imported LED chips, high quality and refreshrate IC, low noise power supply, which can guarantee the led screen work smoothly in the environment of -20℃~40℃.
9. Brightness can be adjusted according to the detailed indoor environment, low attenuation lamp, even current distribution, making the screen low power consumption and good quality.
Specification of Small Pitch Indoor P1.667 LED Video Screen:
Parameter Technical of P1.667 Indoor Small Pitch LED Screen for fix installation
Item Model Parameter
LED Module Info. Pixel Pitch P1.667 Indoor Small Spacing
LED Lamp SMD1010
IC Driver ICN2153
LED Module Size 200*150mm
LED Module Resolution 120*90dots
Color Temperature 3000-9000K
Drive Mode 1/30 scan
LED Cabinet Info. Cabinet Size 400*300mm
Cabinet Resolution 240*180dots
Cabinet Material Die-casting Aluminum Cabinet
LED Module Quantities 2*2=4pcs
Cabinet Net Weight 5 kg/pc
LED Display Info. Best Viewing Distance 1.6 m-100m
Viewing Angle H: 140°/ V:140°
Pixel Density 160000dots/㎡
Brightness 800-1000nits/sqm
Max.Power Consumption 700W/㎡
Ave.Power Consumption 300W/㎡
Refresh Rate 1920Hz-3840H, can be adjusted
Control System Info. Operating System WIN98/2000/NT/XP
Control Method Synchronous display with control PC by DVI or Asynchronous with Wifi/4G/USB
Control System Linsn, Nova-star, Colorlight or as you required
Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Frame Frequency 50Hz or 60Hz
Transmission Distance Multi mode fiber <500m, single mode fiber <30km, internet cable<100m
Operation Info. Working Temperature -40℃--+60℃
Storage Temperature -30℃--+80℃
Input Voltage AC110V/AC220V
Humidity Environment 10%-95%
Lifespan 100, 000hours
MTBF 10, 000hours
Certificate CE, CCC, FCC, ROHS, ISO9001
