P3.91 Led Display
Posted at: Offers to Sell and Export | Posted on: Wednesday 22 August 2018 3:34 am | Poster last visit: Tuesday 4 September 2018 |
Product Category: Main
» Information Technology Broadcasting and Telecommunications
» Computer Equipment and Accessories
» Computer displays
» Poly light emitting diode LED display
» P3.91 Led Display
Product Description:

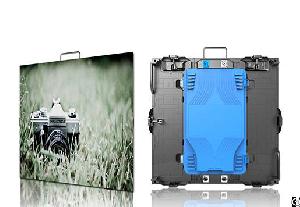

P3.91 LED Display
Rental Led Video Wall
Indoor Rental Led Display
P3.91mm HD Rental led video wall
500mx1000mm rental led display Screen
Ph3.91mm Die-Casting Aluminum LED Display Cabinet Specification:
Pixel Pitch(mm) 3.91mm
LED Package SMD2121
Module Pixel (dots) 64dots×64dots
Module Size (mm) 250mm(W)*250mm(H)
Cabinet Size (mm) 500mmx1000mm
Input Voltage(AC) 220V±10% or 110V ±10%
Current Leakage to Ground (mA) < 3
Average Power Consumption (W/m2) 320
Max. Power Consumption (W/m2) 850
Control Mode Synchronization
Control System VAG+DVI Card+Control Cards+Transmission Cables
Video Acceptable TV VCD DVD
Display Mode 576×576, 480*576, 960×576, 960×960…1152×960
Transmission Distance CAT-5E<130m /Multi-mode Optical Fiber<500m / Single Mode Optical Fiber<10km
Scan Mode 1/16
LED Drive Mode Constant Current
Brightness (cd/m2) 2000
Pixel Density 65746dots/m2
Viewing Distance(m) 3~25m
Hor. Viewing Angle(degree) 160°
Ver. Viewing Angle(degree) 120° or 160°
Brightness Calibration 256 grade
Gray Calibration 256~4096 grade
Images Calibration Contrast/Tonality/Single Module Lightness
Refresh Rate 300~2440 frame/s
Frame-changing Frequency More than 60Hz
Display color 17M~69G
Continuous Working Hours >72 Hours
Using Life 100, 000 Hours
MTBF >10, 000 Hours
Scatter OOC Point <0.01%
Continuous OOC Point 1‰
Working Temperature -20℃~+40℃
Working Humidity 10~60%
Software LEDVISION
Cabinet Weight (Kg) 12Kg/cabinet
Features of HD Ph3.91mm Rental led video wall die-cast aluminum cabinet
(1) Light. Cabinet size of 500*1000mm and light weight of only 22.5 kg enable one-person installation easier and simpler, save installation time. But traditional HD stage led screen is over 45 Kg with the same size.
(2) Thin. Adopting the die-casting aluminum, it is high strength, high tenacity, high accuracy and not easy to distort. The thickness of our cabinet is 87mm, the traditonal cabinet is 160mm.
(3) Quick. Adopting quick locking mechanism on the Up, down, left and right connection. Tighten two cabinet up with pull and turn the two handles by 90 degrees. You can install one cabinet with high accuracy in 10 seconds. Cabinet splicing and wiring connection is fast and reliable. Not only beautiful appearance but also a real sense of the rapid disassembly.
(4) Easy. Adopting modular design, assembled cabinet can install and disassembly quickly and easily. It is easy to maintenance.
(5) Compatible. New structure design, can satisfy hoisting, overstow, indoor and outdoor used requirements. Cabinet simplification, and various pixel pitch of indoor and outdoor led module such like P4, P5.33, P6.4, P8, P10.66, P12.8, P16 are compatible.
(6) Low. Has excellent heat dissipation design and performance. it is low noise and doesn't need external fan or air-condition. With the features of lighweight and low power consumption, it can reduce the labor cost of installation and operating costs.
