Product Description:

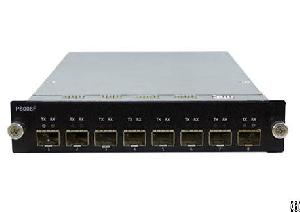

P8000 Series Test Modules
Comprehensive Ethernet Tester
Lan Network Tester
P8000 Series Test Modules
deliver professional network testing functionality on BigTao series test platform with high performance and availability. P8000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing
P8000 Series Test Modules deliver professional network testing functionality on BigTao series test platform with high performance and availability. P8000 series are specialized developed for comprehensive and automated testing of networking devices on production line, providing the best cost-effective testing solutions on 2nd Layer protocol testing and analyzing.
P8000 series provide low cost testing solutions on BigTao platforms and meet test requirements of all kinds of networking devices in each stage of R & D, experiment, quality control, performance monitoring and production line.
With support of the basic test application--TeleExplorer, P8000 series provide a full IPv4/IPv6 stack. Each port can generate 64 streams with independent configurations and statistics.
With support of the specialized automation test application--TeleATT, P8000 series deliver a fully automated testing solution which support asynchronous test for multiple DUTs. P8000 series provide the test mode of aggregation, eachother and loopback with a variety of frame patterns such as Random length, Alternate length, and Fixed length.
P8000 series are supported in high performance chassis of BigTao200, BigTao6000 and BigTao12000, providing accurate chassis-to-chassis synchronization.
key features
Support SFP+ on 10 Gbps Support line-rate traffic generation and analysis
Support stream template as layer2, ipv4, ipv6, TCP, UDP, ICMP, IGMP and ARP.
Support customized data packet generation
Accurate data rate control based on port and stream
Statistics results can be displayed in the form of table and graph
Built-in PC running Windows XP for separately operating
Multi-user login with easy remote access via a network
Specification list
Model P8000 Series
Port Number Up to 8 x 10G ports per module
Physical Status Indicators: Tx/Rx
Weight: 0.6kg
Size: 271mm x 35.5mm x 180mm
Peak power requirement: 48W Max
Traffic Generation Traffic generating based on port and stream, per port have up to 256 different streams
Each stream provide up to 4 saltus step domain
Accurate data rate regulation based on port and stream, support dynamic data rate regulation
Each stream is capable of generating packets of IPv4, IPv6, TCP, UDP, TCP6, UDP6, Ping, IGMP, ARP, etc.
Each stream support multiple levels of VLAN and MPLS
Signature block is optional in each stream
Each stream supports user-defined packets
Traffic Statistics Statistics results can be displayed in the form of data table and chart
Each port can receive up to 1024 streams
Traffic statistics based on streams:
TX/RX frame count, TX/RX rate count, RX frame Sequence miss count, RX frame IP payload check errors count, Maximum, minimum and average SF latency count, Maximum, minimum and average CT latency
Traffic statistics based on ports:
TX/RX frame count, TX/RX stream count, TX/RX rate count, RX frame IP header checksum errors count, RX frame FCS errors count, frames through user-defined filters count
Traffic Capture RX data frame capture
TX/RX control frame capture
Frame capture based on filter templet
Decode hundreds of protocols
Support captured frame search according to specific conditions
Intuitive display of frames’ features such as source IP address, destination IP address, type of protocol and etc.
Transmitting mode Continuous, Single burst, Multi burst, Time burst and Serialized
Software Support TeleExplorer test system, Test suit of RFC 2544/RFC 2889/RFC3918, TeleATT – automated Test system for product line
Others Easy-to-use graphical user interface
Support C++, C# and TCL API for customizing tests
Module classification
Module Name Ports Per Module Connecter Type Single Rate
P8008F 8 10G SFP+ Fiber 10 Gbps
P8004F 4 10G SFP+ Fiber 10 Gbps
P8004C 4 10G RJ45 Copper 10 Gbps
P8002F 2 10G SFP+ Fiber 10 Gbps
P8002C 2 10G RJ45 Copper 10 Gbps
