Product Description:

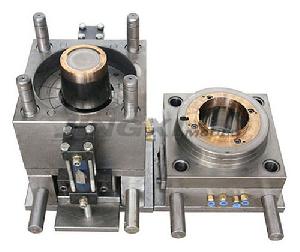

Product name:20Lpainting bucket mould
Product description:Seal proof systen design
Mould cavity:1cavity
Mould
size:620*620*680mm
Suitable machine:500T haitian machine
Mould material:DIN1.2738, core top using Coper Berylium
Mould life:2M
Runner system:1points YUDU hot runner, point gate
Ejection system:stripper plate
Mould running:Full automaticity
Mould features:
The application of Copper Beryllium leads to best cooling effect
Stroke switch controls ejection process precisely
Oil and water integrator is more convenient for application and operation
Copper guide bush, abrasion resistance and prolong the mould life
Injection cycle time:22seconds(high speed injection machine)
Delivery time:45days
the country of mould'client:South Africa
Company Contact:
Contact Name: Elain Zheng
Company Name: Tai Zhou Huangyan Jingxi Mould Factory
Email:
Tel: 008613004788948 or 86-576-84407248
Fax: 0057684407248
Street Address: Northern Industrial
Zone, Huangyan, Taizhou City,
Zhejiang Province, China 318020
Website:
http://www.cnmoulds.com
Member name: cnmoulds
Country:
China
Member Since: 20 March 2010
Total Leads:
9 cnmoulds Import Export Business Leads
Business focus: Commodity Mould, Plastic Furniture Mould, Food Packaging Mould, Crate Mould, Bucket Mould, Pipe Fitting Mould, Basket Mould, Chair Mould
