Paper Roll Slitter Rewinder With Patented Technology

Posted at: Offers to Sell and Export | Posted on: Thursday 31 May 2012 5:55 am | Poster last visit: Friday 1 June 2012 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Industrial process machinery and equipment and supplies » Paper making and paper processing machinery and equipment and supplies » Slitters » Paper Roll Slitter Rewinder With Patented Technology

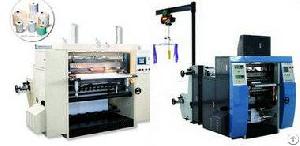

Product Photo:

paper roll slitter rewinder patented technology

Similar Products Catalog:
Products Photos Catalog Paper Roll Slitter Photos Catalog

Product Description:

Model:RCHM-FQ500F/S-2P

Technical specifications:


load-rolls: 2 rolls /1roll

Max.Width of Unwinding:

500mm

Max.Dia Of unwinding:750mm /1000( 2ply/1ply)

Min.width of slitting: 25mm

Diameter of unwinding paper core: 76mm(3inch)

Max.Dia of rewinding:80mm/160mm( 2ply/1ply)

Reference diameter of rewinding paper core: 8mm-38mm.(availabe in custom-design inner core diameter)

Reference inner diameter of coreless rewinding: 16mm-36mm

Max.Speed of slitting:100M/Min

Power:2.2kw

Power supply: 3P 380V/50HZ

Air supply: compressed aire 0.6MPa

Dimension: 2700mm*2200mm*1900mm(L*W*H)

Model:RCHM-FQ500-1P

Max.Diameterof unwinding paper:1000mm

Max.width of unwinding paper:500mm

Unwinding Paper core diameter :3inch

Slitting method: shear cutting.

Slitting power:1.5KW(added transducer)

Slitting knife spacer:20 pcs for each 1.0mm/1.5mm

Slitting speed:150M/Min

Jumbo roll loading: pneumatic type

Tension control and detector:Mitsubishi

Rewining paper core diameter rang:8mm-38mm (availabe in custom-design inner diameter)

Reference inner diameter of coreless rewinding:10mm-38mm.

Max.Rewinding diameter:200mm( available in custom-design rewinding diameter)

Counter:1group *2 way

Automatic paper tucker:pneumatic type

Operation:Mitsubishi PLC control system

Banana roller:3-5mm adjustable radian

End mark printing device:1set

Compressed air :0.6Mpa

Dimension:2350(L)*2200(W)*1900(H)mm

For more details please visit our website to watch the working videos or contact us, thanks!



Company Contact:

Richindustryholding photo
Contact Name: Jamie
Company Name: Rich Industry Holding Co., Ltd
Email: Email
Tel: 86-020- 62183235
Fax: 86-020- 62183236
Street Address: 448-456 Huangshixi
Road, Guangzhou, China
Website: http://www.richmachine.cn
Member name: Richindustryholding
Country: China-CN China
Member Since: 25 February 2011
Total Leads: 155 Richindustryholding Import Export Business Leads
Business focus: Paper Converting Machine, Continuous Form Processing Machine, Sheet-fed Offset Press, Continuous Form Printing Machine
