Product Description:

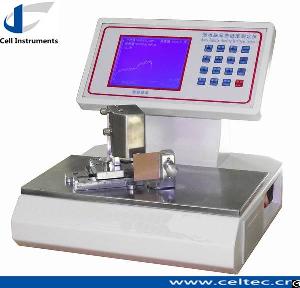

Paper Stiffness Tester Technical Features
LCD display, PVC operaion manual
7.5° and 15° stiffness test
and 90° paperboard crease stiffness test
Any test time setting between 3-35 seconds
Six specimens of different length can be tested
Automatic measuring, statistics and printing; test time setting
Two test curves display of force-time, force-angle
High speed returning to original postion, which can be set between 0.55 º/s and 20º/s
Technical Data
Test range:15-10000mN
Accuracy: ±0.6mN(when less than 50mN), others ±1%
Resolution:0.1mN
Variability of indication: ≤1%
Bending length: (50/25/20/15/10/5 ±0.1)mm
Bending angle:(±7.5º or ±15º)(1-90° adjustable)
Length of load arm: 200°±20°/min
Bending speed: 3s~35s adjustable
Demension: 340mm(L)X330mm(W)X340mm(H)
Weigth: 15kg
