Product Description:

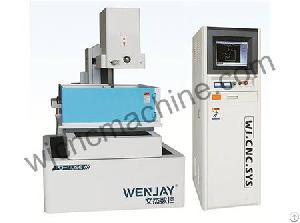

Pd-40se
MS-WEDM Description
Machine tool type PD-40SE/ST
Worktable Size (W*L) 850×600mm
Max load
weight of Medium Speed Wire-Cutting Machine 500kg
Max cutting efficiency 180mm˛/min
Max processing current 7A
Electrode wire diameter range (molybdenum wire) 0.12-0.25mm(standard configuration 0.18mm)
Driving mode X, Y, U, V-axis servo (Panasonic servo) or stepper ( 5-phase 10-pat), Z-axis electric silent elevation
Cutting fluid box configuration High pressure slow wire filtration, volume 100L
Cutting fluid ratio liquid mixed with pure water, concentration 8-12
Host weight of Precise Medium Speed Wire-Cutting Machine 2160kg
Host outline size (L*W*H) 1600×1220×1700mm
Packaging outline size (L*W*H) 1850×1420×1800mm
More information please view here.
