Pipe And Shells Growing Line System

Posted at: Offers to Sell and Export | Posted on: Tuesday 26 November 2019 5:52 am | Poster last visit: Wednesday 18 December 2019 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Welding and soldering and brazing machinery and accessories and supplies » Welding machinery » Shielded metal arc welding or stick welding machine » Pipe And Shells Growing Line System


Product Photo:

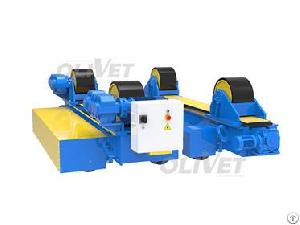

pipe shells growing line system

Similar Products Catalog:
Products Photos Catalog Pipe Shells Growing Photos Catalog

Product Description:

FITZ Growing Line Growing Line - FITZ Series pipe and shells growing line system

Stable Speedy Shells


Joining and Growing Process

FITZ series shell Growing Line is used for three or more pipes/ shells assembly and welding job. FITZ Growing Line is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

growing line roll system Features

A.  Designed and robustly built to withstand rugged work enviroments

B.  Fastest system to assemble 1+1 or 1+1+...+1 sections

C.  Four independent hydraulic adjusting roller to align the two sections with each other

D.  Large range center distance to match diffrent diameter of workpiecec

E.  European hydraulic station, Parker oil tube and Schneider elctrical control system

F.  Ideal for:

    - Wind tower fabrication

    - Pressure vessels

    - Pipe assembly

growing line system Technical Paramter

Model FITZ-60 FITZ-100

Max  loading capacity 60 tons 100 tons

Rotator  A & B capacity 30 tons 30 tons

Rotator C (v-roll support) capacity 30 tons 50 tons

Rotator  D and E capacity 60 tons 100 tons

Workpiece diameter ? 800- ? 4500 mm ? 850- ? 5500 mm

Rotator  A & B roller center-distance adjusting Hydraulic cylinder Hydraulic cylinder

Rotartor  C height adjusting Hydraulic cylinder Hydraulic cylinder

Rotator  D roller center-distance adjusting Motorized lead-screw Motorized lead-screw

Rotator  E roller center-distance adjusting Bolts  manual Bolts manual

Rolling  speed 100-1000mm/min (VFD) 100-1000 mm/min (VFD)

Rolling  motor power 2  X 2.2 kw 2 X 3 kw

Roller    material Polyurethane  (PU) Polyurethane    (PU)

Hydraulic  control mode 5 each separatly 5 each separatly

Rotator  D horizontal moving speed 250-2500mm/min    (VFD) 250-2500mm/min    (VFD)

Rails  inner gauge 2000mm 2000mm

Wuxi OLIVTE Machinery Equipment Co., Ltd supply welding equipment, welding rotators, welding positioner& manipulator, milling equipment, etc.



Company Contact:

weldingrotatorchina photo
Contact Name: Annie Zhang
Company Name: Wuxi Olivte Machinery Equipment Co., Ltd
Email: Email
Tel: 86-510-83830908
Fax:
Street Address: Yaxi Community,
Luoshe Town, Huishan District Wuxi,
Jiangsu 214000 China
Website: https://www.weldingrotatorchina.com
Member name: weldingrotatorchina
Country: China-CN China
Member Since: 26 November 2019
Total Leads: 12 weldingrotatorchina Import Export Business Leads
Business focus: Welding Equipment, Welding Rotators
