Pipe Waver
Posted at: Offers to Sell and Export | Posted on: Friday 17 September 2010 7:48 am | Poster last visit: Sunday 26 September 2010 |
Product Description:

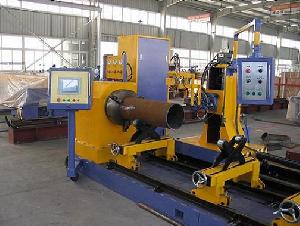

CNCXG series of CNC Pipe Intersection Cutting Machine is a kind of equipment that can automatically calculate
and cut the intersection line hole, intersection line end, elbow (shrimp joint) for various steel pipes and nonferrous metal pipes. This machine is used widely in the cutting of pipeline components in such industries as construction, chemical, ship-building, machinery engineering, metallurgy, electricity etc. In the past, this kind of processing was mainly performed with backward and complicated operation techniques such as prototype making, lineation, manual proofing, manual cutting, manual polishing etc. It is very convenient for CNCXG series of CNC Pipe Intersection Cutting Machine to process this kind of work without calculation, programming but inputting the pipe radius, intersection angle, etc. for the pipe intersection system, then the machine can automatically cut the intersection line, intersection line hole and welding bevel of the pipe.
CNCXG series of CNC Pipe Intersection Cutting Machine is numerical controlled, with different models different from 2 to 6 control axes etc. Each model can realize control axis interlinking operation during processing. They have functions like cutting intersection lines and intersection holes; angle-fixed bevel, point-fixed bevel and variable angle bevel cutting functions; compensation to roundness and eccentricity of the pipe.
Cutting Technical Data
Model CNCXG
Cutting Pipe Diameter (mm) 60-630 60-800 100-1000 200-1250
Pipe length(mm) 1000-12000 1000-12000 1000-12000 1000-12000
Max pipe loading( Kg) 2000 3500 4000 5000
Cutting Speed (mm/min) 80-1800
Cutting Thickness(mm) 5-60mm
Plasma max beveling angle ≤45°
Flame max beveling angle ≤60°
Basic components
Pipe Chuck 3 jaws concentric chuck
Cutting Mode Flame and Plasma
Number of Control Axes 2, 3, 4, 5, 6
Driving Motor Panasonic, Mitsubishi
Gearbox SEW gearbox
NC Controller Advantech
Plasma Power Thermadyne, Kjellberg, Hypertherm
Other Specifications
Working temperature - 10°C -45°C
Humidity <90%, no condensation
Surroundings Ventilation, no big shake
Power voltage 3×380V±10% or up by user’s local condition
Operation language English or Chinese
Options
Option Item Heating and cooling systems, Programming software
integration dust extraction
Company Contact:
Contact Name: Cathy Sun
Company Name: Shanghai Tayor Heavy Industry (Group) Co., Ltd.
Email:
Tel: +86-21-51377027 or 86-18918392777
Fax: +86-21-51377018
Street Address: No. 1377, Xintanwa
Road, Pudong New District, Shanghai,
China
Member name: cathytayor
Country: China
Member Since: 17 September 2010
Total Leads: 13 cathytayor Import Export Business Leads
Business focus: Cnc Cutting Machine, Cnc Plasma Cutting Machine, Pipe Cutting Machine
