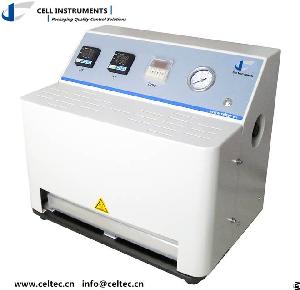

Plastic Film Heat Seal Tester
Posted at: Offers to Sell and Export | Posted on: Monday 1 June 2015 6:09 am | Poster last visit: Tuesday 21 July 2015 |
Product Category: Main
» Engineering and Research and Technology Based Services
» Manufacturing technologies
» Quality control
» Materials testing
» Plastic Film Heat Seal Tester
Product Description:
Plastic Film Heat Seal Tester is for the determination of the heatsealability of a surface, or sealant
layer of films, laminates, composites and polymers etc. How well the material heatseals is expressed quantitatively as seal strength as a function of the sealing conditions of temperature, time and pressure.
Standard: ASTM F2029
Plastic Film Heat Seal Tester Technical Data
Sealing Temp. Room Temp. ～ 300℃
Deviation ±0.2℃
Sealing Time 0.1s～9999H
Sealing Pressure 0.15 MPa ～ 0.7 MPa
Seal Jaws 330 mm × 10 mm (Customization Available)
Gas Pressure 0.5 MPa ～ 0.7 MPa
Port Size Ф6 mm PU Hose
Dimensions 455mm (L) ×320mm (W) ×440mm (H)
Power AC 220V 50Hz(Customization Available)
Features:
1. P.I.D. for precise sealing temperature control
2. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating
3. Precise timer ensures accurate sealing time control
4. Independent heating of upper and lower sealing jaws
5. Sealing jaw customization available in term of dimension, shape and surface
6. Manual and foot switch starting test, anti-scald design
Company Contact:
Contact Name: Owen
Company Name: Cell Instruments Co., Ltd.
Email:
Tel: +86-531-88977152
Fax: +86-531-88977152
Street Address: Xiying
Jinan, Shandong 250000
China
Website: https://www.celtec.cn
Member name: celtec
Country: China
Member Since: 09 October 2014
Total Leads: 33 celtec Import Export Business Leads
Business focus: Testing Instruments, Testing Equipments, Packaging Test, Packaging Testers, Food Package Tester, Leak Tester, Heat Seal Tester, Seal Strength Tester
