Pn10 Pn16 As2638 Resilient Gate Valve-ductile Iron Ggg40

Posted at: Offers to Sell and Export | Posted on: Thursday 6 June 2024 2:02 am | Poster last visit: Thursday 13 June 2024 |

Product Category: Main » Distribution and Conditioning Systems and Equipment and Components » Fluid and gas distribution » Valves » Gate valves » Pn10 Pn16 As2638 Resilient Gate Valve-ductile Iron Ggg40


Product Photo:

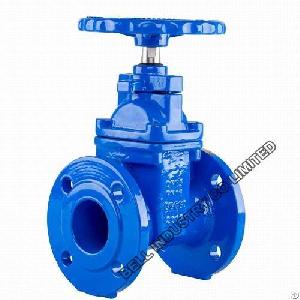

pn10 pn16 as2638 resilient gate valve ductile iron ggg40

Similar Products Catalog:
Products Photos Catalog Pn10 Pn16 As2638 Photos Catalog

Product Description:

PN10 PN16 AS2638 Resilient Gate Valve-Ductile Iron GGG40-

Resilient seated ductile iron gate valve is


manually operated by a non rising stem handwheel operation made in accordance with AS2638.2, used in waste water and water treatment industries.

-Design Std: AS2638.2

-Size:DN50--DN600

-Pressure Rating: PN16

-Seat: NBR, EPDM

-Face to Face: AS2638.1 & ANSI B16.10

-Ductile iron body and bonnet for high strength and impact resistance

- Ductile iron gate fully encapsulated in EPDM rubber to ensure tight seal

-Epoxy Coated To AS4158 300 μm minimum DFT

-Flange Ends:AS4087 & AS2129 Table E/D

-Hydraulic Test: ISO 5208

-Working temperature:-10 to +80℃
