Popular Safety Light Curtain Std6410 With Protection Range 0-15m At Less Cost
Posted at: Offers to Sell and Export | Posted on: Wednesday 4 July 2012 7:27 am | Poster last visit: Friday 9 August 2013 |
Product Category: Main
» Defense and Law Enforcement and Security and Safety Equipment and Supplies
» Security surveillance and detection
» Surveillance and detection equipment
» Safety light curtains
» Popular Safety Light Curtain Std6410 With Protection Range 0-15m At Less Cost
Product Description:
Detailed Product Description
1.Largest Protection Distance 0-15000mm
2.High-reliability, Perfect anti-interference
3.Various
models with wide protect he
1.Brief introduction

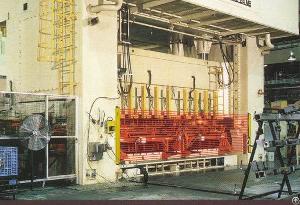

STD6410 light curtain, comprise of Transmitter(emitter), Receiver, Connection Cables, Controllers, Mounting fittings. compact structure, slim profile, robust canopy. Through beam type, Application fields: mainly used in the machinery field to protect operators, such as:
- Presswork machinery
- Shearing equipment
- Metal cutting equipment
- Automated assembly line
- Automated solder line
- Machinery transmission equipment
2. Main Characteristics:
* Fast response time <20ms.
* LED indicator, easy to algin, display real-time working status.
* Auto self-checking function to avoid output wrong signals to control circuit.
* Dual relay output to guarantee high safety.
* Reset function: When any beam(one or more) is obstructed, equipment can't run till press "Reset" Button, light passing recovers as well.
* Easy connection: End lid with aviation plug in connector and cable.
* High anti-interference: not affected by electromagnetic signal, strobe, welding arc and other periphery light.
Anti-vibration: adoption of several shock-absorbers like rubber washer, damper to reduce vibration by the greatest extent.
3.STD series's specification
Protection range, 0-15000mm; 2 sides protection as well.
Specification
STDxx10 (xx=24, 32, 40, 48, 56136)
STDxx20 (xx=08, 12, 16, 20, 2472)
STDxx40 (xx=04, 06, 08, 10, 1272)
STDxx80 (xx=02, 04, 06, 08, 1220)
Light axis spacing 10mm, 20mm, 40mm, 80mm
Protection height=(xx-1)×light axis spacing
STDxx10 230, 310, 390, 4701350mm
STDxx20 140, 220, 300, 3801420mm
STDxx40 120, 200, 280, 3602840mm
STDxx80 80, 240, 400, 5601520mm
Mounting brackets refers to illustrated catalogue.
Can be used in series for Vertical and Horizontal protection.
4. Main Parameters:
Property project
Specific parameter
Output
Single Impulse Signal, NPN or PNP
Controller
Dual Relay
Controller Installation
W/S type(External), N/ND type( builtin)
Light Type
Through Beam, infrared
Response
<20ms
Cable
3M/8M(1side), 5M/10M(2sides)
Power Supply
AC220/110V, DC24V available
Sealing Rank
Sensor/IP65, Controller/IP54(External), IP20(Built-in)
Working Temp.
-10~+55 degrees
Dielectric Capacity
ac250v5a, dc30v
Insulating Resistance
>100MΩ
Company Contact:
Contact Name: Jack
Company Name: Shandong Laien Optic-Electronic Technology Co., Ltd
Email:
Tel: 86-537-3926517
Fax: 86-537-3926519
Street Address: West Shanbo Road,
Rencheng Economic Development Zone,
Jining City, Shandong Province, 272000, China
Website: http://www.laien.cn
Member name: laientech
Country:
China
Member Since: 01 June 2012
Total Leads: 40 laientech Import Export Business Leads
Business focus: Safety Light Curtains, Safety Light Curtain Sensors, Punch, Press Portection Devices, Safety Relays, Sensor
