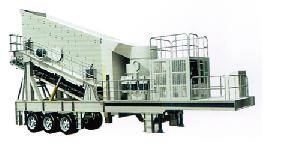

Portable Cone Crushing Plant Used In Mining, Metallurgy, And Building Materials
Posted at: Offers to Sell and Export | Posted on: Tuesday 20 April 2010 1:39 am | Poster last visit: Tuesday 14 December 2010 |
Product Category: Main
» Mining and Well Drilling Machinery and Accessories
» Mining and quarrying machinery and equipment
» Crushers and breakers and grinders
» Crushing plants
» Portable Cone Crushing Plant Used In Mining, Metallurgy, And Building Materials
Product Description:
Features Of Portable Crushing Plant in my company Shanghai Joyal Mining Machinery Co., Ltd.:
1. Move
easily.It can go to the crushing place where is difficult to go. It not only can drive on the smooth road, but also on the bumpy road.
2. Compact structure and simple operation. Integrative equipment group with trailer saves the working area. With generator, motor and control box, it can work in any place even there is no electricity. With supporting equipment on the trailer, so no need to install the machine.
3. Save the cost. Crush the materials on site, reduce the transportation cost.
4. Wide application. The crushing plant can work as independent unit; work with other unit to do primary and secondary crushing; work with two other units to do primary, secondary, and fine crushing; working as a production line with the screening equipment (firstly screening then crushing, or firstly crushing then screening.)
5. Good performance and convenient maintenance. The crushers, vibrating feeders, and vibrating screens are from Shanghai Joyal Heavy Industry, so the quality is reliable and stable. Material is delivered by belt conveyors, which is simple in operation, easy maintenance, and low investment.
6. Flexible configuration. Can provide suitable portable crushing plant based on customers working site, material typical, and particle shape requirement. Such as single unit, combined units, self-load belt conveyor unit and so on.
Main Specifications Of Portable Cone Crushing Plant:
Model Vibrating screen Cone crusher Belt conveyor Capacity (t/h) Power (kw) Max Dimension
L×W×H (mm) Total
weight
(t)
Y3s1548y900 3yzs1548 pyb900 b500×7m 50-200 75 13000×
2800×
6400 43
Y3s1848s36 3yzs1848 zys36 b650×7m 70-300 99-134 13000×
3000×
6700 47
Y3s1860s51 3yzs1860 zys51 b650×8m 120-400 212.5-220.5 14000×
3000×
6700 53
Y3s2160h220 3yzs2160 hp220 b800×8m 140-450 257.5-264.5 14000×
3200×
6700 58
Company Contact:
Contact Name: Xiaoyuchen
Company Name: Shanghai Joyal Mining Machinery Co., Ltd.
Email:
Tel: 0086-21-68763311 0086-21-68763366
Fax: 0086-21-68763366
Street Address: No.3389, East Huaxia Road,
Pudong New Area, Shanghai, Post Code
201201, China
Website: http://www.crusherinc.com
Member name: zhuoya001
Country:
China
Member Since: 20 April 2010
Total Leads: 135 zhuoya001 Import Export Business Leads
Business focus: Jaw Crusher, Impact Crusher, Cone Crusher, Hammer Crusher, Crushing Plant, Sand Washing Machine
Chat:
Verify: Safe Import Export Tips
1. Move
easily.It can go to the crushing place where is difficult to go. It not only can drive on the smooth road, but also on the bumpy road.
2. Compact structure and simple operation. Integrative equipment group with trailer saves the working area. With generator, motor and control box, it can work in any place even there is no electricity. With supporting equipment on the trailer, so no need to install the machine.
3. Save the cost. Crush the materials on site, reduce the transportation cost.
4. Wide application. The crushing plant can work as independent unit; work with other unit to do primary and secondary crushing; work with two other units to do primary, secondary, and fine crushing; working as a production line with the screening equipment (firstly screening then crushing, or firstly crushing then screening.)
5. Good performance and convenient maintenance. The crushers, vibrating feeders, and vibrating screens are from Shanghai Joyal Heavy Industry, so the quality is reliable and stable. Material is delivered by belt conveyors, which is simple in operation, easy maintenance, and low investment.
6. Flexible configuration. Can provide suitable portable crushing plant based on customers working site, material typical, and particle shape requirement. Such as single unit, combined units, self-load belt conveyor unit and so on.
Main Specifications Of Portable Cone Crushing Plant:
Model Vibrating screen Cone crusher Belt conveyor Capacity (t/h) Power (kw) Max Dimension
L×W×H (mm) Total
weight
(t)
Y3s1548y900 3yzs1548 pyb900 b500×7m 50-200 75 13000×
2800×
6400 43
Y3s1848s36 3yzs1848 zys36 b650×7m 70-300 99-134 13000×
3000×
6700 47
Y3s1860s51 3yzs1860 zys51 b650×8m 120-400 212.5-220.5 14000×
3000×
6700 53
Y3s2160h220 3yzs2160 hp220 b800×8m 140-450 257.5-264.5 14000×
3200×
6700 58
Company Contact:
Contact Name: Xiaoyuchen
Company Name: Shanghai Joyal Mining Machinery Co., Ltd.
Email:
Tel: 0086-21-68763311 0086-21-68763366
Fax: 0086-21-68763366
Street Address: No.3389, East Huaxia Road,
Pudong New Area, Shanghai, Post Code
201201, China
Website: http://www.crusherinc.com
Member name: zhuoya001
Country:
ChinaMember Since: 20 April 2010
Total Leads: 135 zhuoya001 Import Export Business Leads
Business focus: Jaw Crusher, Impact Crusher, Cone Crusher, Hammer Crusher, Crushing Plant, Sand Washing Machine
Chat:
Verify: Safe Import Export Tips
