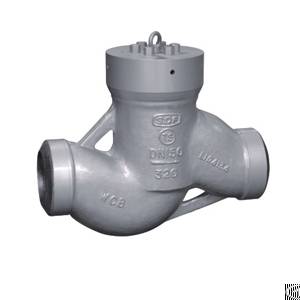

Power Plant Check Valve Sdh61y-320
Posted at: Offers to Sell and Export | Posted on: Saturday 7 May 2016 6:08 am | Poster last visit: Tuesday 2 August 2016 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Fluid and gas distribution
» Valves
» Swing check valves
» Power Plant Check Valve Sdh61y-320
Product Description:
Product overview
The high voltage valve pipe ends welded structure, the welding groove must be made
according to the standard or user requirements, it is suitable for the thermal power plant, petrochemical, metallurgical and other high temperature and high pressure steam, water, oil, steam pipe for preventing device of medium flow. . The processing of pure metal layer is more than or equal to 3mm, with a wear-resistant, high temperature resistance, corrosion resistance, abrasion resistance, long service life.One is the introduction of ANSIB16.34 and JIS type according to E101 standard; the other is a national standard Jb3595 standard. Temperature and pressure rating of the following is the same, in some pipeline there are some exchange relation. In the middle of the valve cover junction valve pressure, has good sealing performance under high temperature and high pressure conditions. Self sealing ring has two kinds: one kind is the low carbon steel materials, the other is a flexible graphite with 316 wire (network). Sealing surface is welded cobalt base hard alloy.
Execution standard:
1.The design and manufacture and acceptance by thermal power valve standard ANSIB16.34 API6D GB12236 E101 and JB/T3595, DL/T531 prescribed standards.
2, the structure length by E101, JB/T2766, GB/T15188.1 ANSIB16.10 GB12221 standard or according to user requirements.
3 pressure - temperature level by E101, JB/T3595 API598 GB9131 prescribed standards.
Structure characteristics:
1 the valve flap quenching, and can move on the body, medium back, by the medium pressure and the automatic valve valve spring.
2 the valve seat sealing surface using cobalt based alloy plasma spray surface. Wear resistance and good anti abrasion performance.
3 valve body, valve cover for die forgings.
4 check valve should be installed in horizontal pipelines medium flows from down to up.
