Product Description:

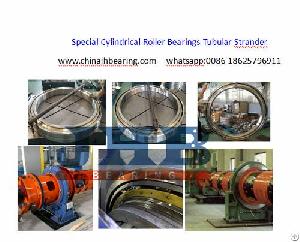

Non-standard roller bearing 547406 622x775x108mm used in high speed wire cable steel rope strander tubular
machine. We had serviced more 15 customer in the power industry area.
Bearing factory model:Z-547406.ZL
China Bearing old type: 547406 P5
Bearing structure:single row cylindrical roller bearing
Precision grade:P5 P6 grade
Radial clearance:C1 C2 C3 Gruop available.
Single row cylindrical roller bearings, NU seires, N series, NJ series and NUP type
The bearing application: high speed wire cable steel rope tubular stranding machines
Bearing boundary Dimension: Standard size, offer drawing to confirm
ID(inner diameter)/:Standard size, offer drawing to confirm
OD(outer diameter):Standard size, offer drawing to confirm
Width/Height/thickness: Standard size, offer drawing to confirm
Quality standard:GB307 Rolling bearing technical requirement
Weight:116KGS
Bearing boundary inch size:Standard size, offer drawing to confirm
Bearing outer diameter inch: Standard size, offer drawing to confirm
Bearing inner diameter inch size:Standard size, offer drawing to confirm
Bearing height inch:Standard size, offer drawing to confirm
The bearing working speed:1300rpm
Basic dynamic load rating, Radial Cr:2400KN
Basic static load rating, Radial Cor:5700KN
Moq:10pcs
HS code:8482500090
Our customer from:Japan, Germany, Spain, Italy, India, USA, Brazil and so on.
Production Capacity:1000 PCS/Year
Outer Ring material:Steel GCr15SiMn
Inner Ring material:Steel GCr15SiMn
Outer Ring and Inner Ring heat treatment:HRC55-62
Heat Treatment:Bainite heat treatment
Cage material:Brass cage
The seaport name:Shanghai or Tianjin or qingdao seaport
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
Rolling Body:Roller Bearings
Transport Package Industrial Packing or as Per Requirement.
