Product Description:
Model: S-I-O-0229
Type: precision gear grinding slewing drive
Slewing drive gear ratio: 5.40
Rated
output torque: 2700N.M
Rotation center diameter: 229mm
Total height with adapter flange: 105mm
Gear backlash: ≤0.15mm

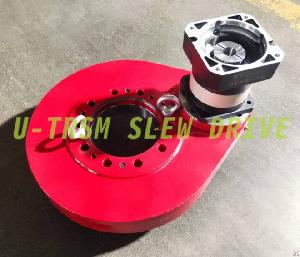

S-I-O-0229 precision gear grinding slewing drive with matching reducer is used on automation equipment. Our customer uses precision slewing drive for indexing, a circle of start and stop 10 times, 36° a working beat, need slewing drive with high precision to ensure the accuracy of multiple start and stop rotation position. The slewing drive adopts high precision small clearance design and tooth quenching after grinding. The precision slewing drive focuses on ensuring that the slewing bearing has a small clearance, rotates flexibly, ensures end face runout and radial runout, and ensures tooth accuracy.
