Precision Internal Gear Slewing Drive For Right-angle Gearboxes

Posted at: Offers to Sell and Export | Posted on: Thursday 11 April 2024 7:44 am | Poster last visit: Monday 23 September 2024 |

Product Category: Main » Commercial and Military and Private Vehicles and their Accessories and Components » Transportation components and systems » Drivetrain systems » Drive shafts » Precision Internal Gear Slewing Drive For Right-angle Gearboxes

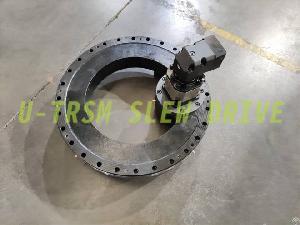

Product Photo:

precision internal gear slewing drive right angle gearboxes

Similar Products Catalog:
Products Photos Catalog Precision Internal Photos Catalog

Product Description:

Precision internal gear slewing drive for right-angle gearboxes

Model: S-II-I-0541


Type: internal gear

slewing drive

Slewing drive gear ratio: 5.0

Rated output torque: 9000N.M

Rotation center diameter: 541mm

Total height with adapter flange: 135mm

Gear backlash: ≤0.15mm

The S-II-I-0541 internal gear precision slewing drive adapted to 90° gearbox is used under the precision turntable of automation equipment, the planetary gearbox and servo motor can be mounted inside the base to save external space. The base height can not be too high, the servo motor can not be directly connected to the planetary gearbox, choose the right-angle gearbox to make the installation direction of the servo motor into the horizontal direction. This design makes the customer’s equipment overall beautiful, reasonable layout, easy installation and maintenance.
