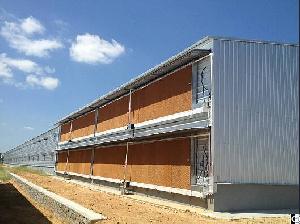

Prefabricated Steel Structure Enclosed Poultry House / Chicken House
Posted at: Offers to Sell and Export | Posted on: Monday 29 June 2015 3:31 am | Poster last visit: Tuesday 25 December 2018 |
Product Category: Main
» Farming and Fishing and Forestry and Wildlife Machinery and Accessories
» Agricultural and forestry and landscape machinery and equipment
» Poultry and livestock equipment
» Incubators or brooders for poultry
» Prefabricated Steel Structure Enclosed Poultry House / Chicken House
Product Description:
Prefabricated Steel Structure Enclosed Poultry House/Chicken House
1. Column: Galvanized Q235, Q345
H-section steel or square tube;
2. Beam: Galvanized Q235, Q345 H-section steel or square tube;
3. Purlin: Galvanized Q235 C-channel;
4. Vertical and transversal support: Q235 angle steel, round bar or steel pipe;
5. Tie bar: Q235 steel pipe;
6. Brace: Q235 round bar;
7. Sleeve: Q235 steel pipe;
8. Roof: Corrugated steel sheet with insulation or sandwich panel;
9. Wall: Wire meshes with curtain system or sandwich panel;
10. Feeding system: Feeder motor connect with feeder hopper;
11. Nipple drinker system;
12. Tunnel ventilation and heating system;
13. Suspension system with ceiling winch;
14. Ventilation: External damper fan with cone.
Basic rules of structure design
1. Design code for steel structure GB50017-2003;
2. Design Ssecification for Curved Thin-walled Steel Structure GB50018-2002.
Design parameters
1. Coefficient for importance of a structure is 0.95. The usage life is 25 years;
2. 3 security level;
3. Seismic fortification categories: C-class;
4. Earthquake-resistant level: the main structure is level four.
Structural design load
Uniformly distributed load standard values: KN/M2
1. YX-980 0.5mm outsider roof aluminum-zinc steel plate: 0.049KN/m2;
2. 16kg/m3 50mm heat-insulating fiber glass wool:0.008 KN/m2;
3. Z or C roof purlin:0.034 KN/m2;
4.Roof live load:0.5 KN/m2.
Concentrated load:KN/m2(3mis a lifting point)
1. Waterline 0.11 KN/m2;
2. Feed line 0.22 KN/m2;
3. Motor(the end of waterline and feed line)0.41 KN/m2;
4. Full load of hopper 1 KN/m2;
5. Main feed line 0.18 KN/m2;
6. Wind load 0.6 KN/m2;
7. Snow load 0.5 KN/m2.
Advantages:
1. The poultry house can be used for 25 years;
2. The internal environment can be controlled constant temperature and humidity throughout the year;
3. 5.5 batches of broilers can be guranteed per year, and death rate is below 5%;
4. Easy to assemble and disassemble;
5. Can install the equipments at the same time;
6. Great price and good quality.
Any question, pls feel free to contact me.
Company Contact:
Contact Name: Sarah Wan
Company Name: Qingdao Kxd Steel Structure Co., Ltd
Email:
Tel: 86-532-85397878
Fax: 86-532-85397878
Street Address: 802 Room, Ruiping
Center, No.27 Hongqi Road Qingdao,
Shandong 266700 China
Other Contact Info:
Skype: Sarah0117
Mp/whatsapp: 86+18253298323
Wechat: 18253298323
Website: https://www.cnsteelstructures.com
Member name: KXDSteelStructure
Country:
China
Member Since: 10 June 2015
Total Leads: 105 KXDSteelStructure Import Export Business Leads
Business focus: Steel Structure Workshop, Steel Structure Building, Prefabricated House, Poultry House, Steel Structure Warehouse, Container House, Steel Sandwich Panel
