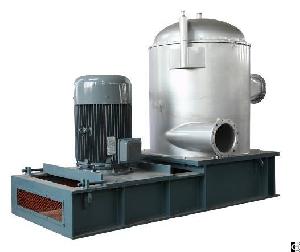

Product Description:
Used for screening all kinds of coarse and fine pulp like waste paper chemical pulp etc. It is also used
as fine screen before paper machine.
Item / Tpye ZSL41 ZSL42 ZSL43 ZSL44 ZSL45
Screen area(m 2 ) 0.3 0.6 0.8 1.2 2.0
Drum(mm) Φ 420× 285 Φ 600× 355 Φ 600× 425 Φ 600× 625 Φ 800× 800
Inlet consistency(%) 0.5-3.0
Hole screen Dia. of screen hole(mm) Φ 1.6-3.2
Capacity(t/d) 20-40 35-70 50-120 75-180 160-240
Slot screen Slot width(mm) 0.25-0.75
Capacity (t/d) 15-30 25-45 30-60 40-90 70-150
Power(kw) 30 45 55 75 90
Packaging
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
Shipments;
1 sea transportation is from qingdao seaports or other ports.
2 the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Perfect service :
1.we can supply technical consulting and feasibility report according to client's current condition ;
2. We can make detail design of workshop and whole factory ;
3.we supply complete installation and test machine ;
4.we train client's engineer and worker for free ;
5.we supply spare part with best price ;
