Product Description:

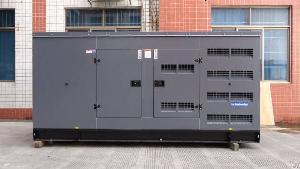

165KW 206KVA Diesel Generator Set Specifications
Genset model DB-165GF
Prime power 165kW 206kVA
Standby
power 182kW 228kVA
Rated voltage(V) 400/230 (customizable)
Rate current(A) 297A
Power factor 0.8
Frequency(Hz) 50
Speed(rpm) 1500
Phase: 3 phase 4 wire
Noise level: 105dB at 7m ( open type diesel genset)
75dB at 7m(silent type diesel genset)
Engine Specification
Manufacturer Shangchai
Model SC8D280D2
Engine output-prime 185kW
Engine output-standby 204kW
Frequency: 50Hz
Speed: 1500rpm
Cylinders no. & Type: 6 cylinders, V type, 4 stroke, diesel engine, water-cooled
Aspiration: Turbocharged AFTERCOOLED
Bore*stroke 114*135mm
Displacement 8.27L
Compression Ratio 18:1
Governor Electronic speed governor
Starter motor voltage: 24V DC
Type Injection System: direct injection
Oil Capacity 19L-15L
Cooling way Water Radiator & fan
