Product Description:

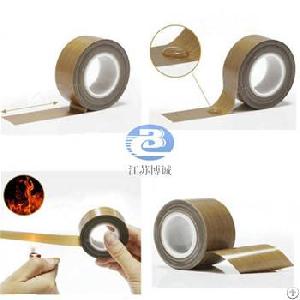

PTFE Coated Glass Fabric Tape
Product Description
PTFE cloth tapes are produced with either silicone
or acrylic pressure sensitive adhesive system. The silicone adhesive coated products have a continuous operating temperature range between -70°C and +260°C (-100° to 500°F) while the acrylic adhesive coated products provides high initial tack, enhanced solvent resistance and a continuous service temperature range of -40°C to +170°C (-104° to 338°F). The PFTE coating provides optimal release, dimensional stability and outstanding heat resistance. PTFE cloth tapes have low friction and function well as electrical insulation.
Bocheng PTFE Glass Cloth Futures:
Surface smooth, non-stick and easy to clean.
Fire retardant.
Excellent dimensional stability and high strength.
High insulation, anti-ultraviolet, anti-static.
Resistant to chemical corrosion, strong acid, alkali and various organic solvents.
Easy to use, long service life.
Common thickness:
0.13mm 0.17mm 0.18mm 0.2mm 0.23mm 0.3mm
Common width for little tapes:
13mm 19mm 25mm 38mm 50mm, with color box, with opp bag
For other width, customizaiton is available, but the waste should be taken into considertaion.
Color:
Brown, Black or White.
Application of PTFE Adhesive Tapes
High temperature roller coating, heating plate and de-moulding fixture.
Food, medicine and plastic bag heat seal.
Liner pasting for sliding chute, hopper and aviation mould, can also be applied in the cylinder of slurry machine, thermal plastic & de-moulding, and other industries, which is reusable and easy to replace.
Applicable to other surface treatment which need to be resistant to adhesion, corrosion and high temperature.
Used in packaging, thermoplastic, composite, heat sealing, electronic and electrical industries.
Technical Date Sheet for Common Types:
Item Number Basic Fabric Thickness Total Thickness Adhesion
(to steel) Tensile Strength Temperature Resistance
KB008AS 0.08mm 0.13mm 23N/100 mm 900 N/100mm —70~260℃
KB012AS 0.115mm 0.17mm 23N/100 mm 1100 N/100mm —70~260℃
KB013AS 0.125mm 0.18mm 23N/100 mm 1300 N/100mm —70~260℃
KB018AS 0.18mm 0.23mm 23N/100 mm 1950 N/100mm —70~260℃
KB025AS 0.25mm 0.3mm 23N/100 mm 2250 N/100mm —70~260℃
