Product Description:

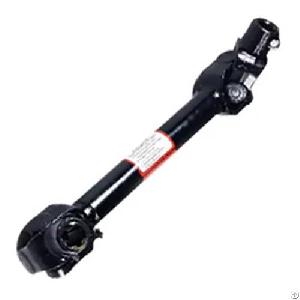

PTO Shaft to fit New Holland Dis Mower Discbines
Our drive shafts for PTO can be adjusted to the following
models of disc mowers:
New Holland Discbines 1431and 1432 Model 411 1409, 1410 1411 14, 1411, 1441, 1442 14, 1431, 143
H7220, h7230, h7320, h7330, h7450, h7460, h7550, h7560
IH DC 132, Case IH DC 132
Parts of Pto Shafts. Pto Shaft
It is important to know the dimensions, measurements horsepower, sizes, and the agriculture PTO shaft components in order to select the right PTO shaft for your farm equipment. Although the U-joints and yokes are required for operation however, the safety chains as well as the shield are vital components in the PTO shaft to ensure you are secure during operation.
Internal Yoke: There are two located on both sides of the PTO shaft: implement and tractor. It is joined on the end of the drive.
Universal Joint- There are two joints at both ends of the PTO shaft.
External Yoke- There is a second on both sides on the PTO shaft. It's got an "Y" shape that connects to the U-joint, and an opening for females.
Safety Chains - The chains ensure the PTO shaft to the equipment as well as the tractor.
Safety ShieldCones placed at both the ends.
Different Models PTO Shaft for Sale
Every discipline has several PTO shafts as well as the combination clutch.
The different types of PTO shafts and locations for clutches differ from model to model.
Three Different Shafts for Pto. Shafts
The kind of PTO shaft you pick will depend on the task you're expected to perform. If you're plowing or mowing or shredding, you'll need an PTO shaft that is suitable for every task. It will also help safeguard your machinery from excessive stress, hits or tension.
Non-Shear PTO Shaft
This design is for equipment that is not intended to withstand sudden stops. It's a yoke-to yoke arrangement. This is a good option for larger mowers as the motions should be smooth, as there won't need to be any moments that are obstructed or stopped.
Shear Pin PTO Shaft
The end yoke comes in two pieces and utilizes a shear pin to keep them in place for operation. The pin absorbs shock when there is sudden stop in order to prevent damage to the driveline. It can be utilized in conjunction with other equipment, such as chippers.
Slip Clutch PTO Shaft
Slip Clutch is made to shield your tractor and the attached equipment from being damaged due to internally sliding- which allows the movement of an object when it hits. For instance, when changes in the season, stones and rocks are brought to the surface and when they are struck you need the impact to be absorbed so that you won't cause damage to the gearbox.
PTO Shaft Length Limit
Its Power Take Off (PTO) shaft is the part that supplies energy to your device. Therefore, it is vital to know how it functions to ensure safety for the user. It is also crucial for you to know the maintenance specifications to avoid mechanical issues. PTO shafts are rated but are not interchangeable with tractors or other implements. It is crucial to attach the right shaft to the machine in accordance with the specifications of the manufacturer and ensure that it's the correct length.
length: The length of the PTO shaft is measured when installing an implement on an tractor in the very first. If a shorter PTO shaft is needed then the operator should follow the formula supplied by the supplier in order to trim the shaft according to its proper length. This is typically accomplished by measuring the output shaft of the tractor and putting the input shaft so that the PTO shaft is at its narrowest.
Too long When your shaft for the PTO is excessively long (or in the event that the telescopic tubes are seized), "end thrust" may occur. This could ruin your tractor's internal PTO drive, or the clutch for your implement and gearbox, possibly invalidating your warranty.
Too short: If the shaft is too long it may break away from the device, creating serious safety risks and causing injury.
How can I cut the PTO Shaft in the Correct Length?
When your PTO shaft gets too big, the shaft may be unable to move during the lifting of the 3-point hitch. The damage could be to the chipper's bearing and the PTO in the tractor. In the event that it is found that the PTO shaft becomes too large, it should be cut. Equal amounts should be cut to shorten both PTO half.
PTO Shaft Maintenance
The PTO shaft must be lubricated regularly to prevent universal joint in good condition and also to stop the shaft from sizing. Inability to grease your shaft on a regular basis or in accordance with the guidelines stipulated in the PTO maintenance schedule of the shaft can cause end thrust, which could lead to damaging the gearbox of the implement. It is advised to grease standard universal joints once every twenty hours, or 8 hours in extreme circumstances. Remember! Grease travels the simplest route through internal ports that lead to four bearings. Poor quality and overheated grease that is baked in a single port will block grease from reaching the bearing, and will cause damage to each of the cross bearings.
In the first place, make sure you complete opening the guard cover so that grease gets across all bearings. The small access hole isn't good enough. Also, make sure to check the condition of the PTO security guards. If they're damaged or damaged, you should arrange for replacement while ensuring the safety of the operator.
