Product Description:

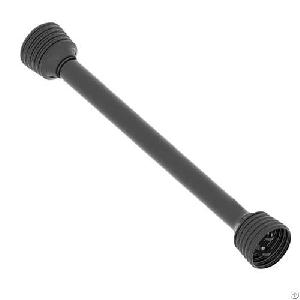

PTO Shaft Replacement for Weasler 12 Series
Specifications for 12 series shafts for PTO
3/8''-6 Spline
Spring-Lok Tractor Yoke
Requires Cross Kit.
Requires Implementation Yoke.
19hp @ 540 rpm
48' Compressed Length (Dim. A)
Bore 1 Minus End Yoke
Bore 2 Minus End Yoke
Compressed (Closed) Length 41.00 inches 1041 mm
Compressed Overall Length 49.12 inches 1248 millimeters
Connection 1 ARMS YOKE
Connection 2 ARMS YOKE
Extended Length 69.75 inches 1772 mm
Extended Overall Length 77.87 inches 1978 mm
HP@1000RPM 29 HP 22 Kilowatts
HP@540RPM 19 HP 14 Kilowatts
Length 49.12 inches 1248 millimeters
Outside Diameter 6.00 inches 152 millimeters
Dimensions of Shipping 41" L 6" H 6" W The dimensions are 104cm L x 15cm H and 15cm W
Shipping Volume 1476.00 in3 24187 cm3
Shipping Weight 23.70 pounds 11 kilograms
Weight 23.70 pounds 11 kilograms
12 Series PTO Shaft Parts
Part Number Cup
Diameter Length
(B) Snap
Ring Series Type
1-1275 1.062 1.812 Inside L12 Ag
16Hp@540rpm
30Hp@1000rpm 200-1200 1.062 1.812 Inside L12 Ag
12 Series Square Or Rectangular Parts
Bar Yoke # Solid Shaft OD Spec Square Sleeve Tube Yoke
Shield Shield Bearing Length Shield Bearing ID
69-1248 56-2000 60 2.050
12 Series Yokes with Quick-Connect Connect
Part Number Diameter No of Splines C-E Length
12-2300
1.00 15 3.25
100-1221 1.375 21
100-1206 1.375 6 4.0
Six Series Clamp Yokes
Part Number Diameter Number of Splines Bore c-e Length Clamp Type Notes
12 Series Splined Clamp Yokes
6211353 1.00 15 Splined
12 / 1200 Round Clamp Yokes
12 1200 Hex Clamp Yokes
12 Series Straight Bores
Twelve Series Round Bores
Part Number Bore Key (c-e) Length
800-1212 0.750 .187 3.50
800-1214 0.875 .188 3.50
800-1215 0.9375 0.250 3.50
800-1216 1.00 .188 / .250 3.50
800-1217 1.062 0.250 3.50
800-1218 1.125 0.250 / 0.312 3.50
800-1220 1.250 0.250 / 0.312 3.50
800-1222 1.375" .312" 3.50
800-1224 1.50 0.375 3.50
12 Series Splined Bores
Part Number Diameter Splines
801-1218 1.125 6
801-1210 1.187 10
801-1206 1.375 6
801-1221 1.375 21
6 Series HEX Bores
Part Number Diameter (c-e) Length
805-1218 1.125 3.5
12-1168 1.125 2.750
12-1328 1.125 3.50
218002 1.125 2.750
2 Series Yokes
12 1200 Series H Yokes
Part Number Length
12-1410 2.375
12-1400 3.375
12 1200 Series Flange Yokes
12 /1200 Series Shear Bolt Yokes
12 1200 Series Slip Yokes
12 / 1200 round Slip Yokes
Part Number Bore Keyway
c-e Length
810-1216 1.00 0.250
810-1218 1.125 .312
220506 1.250 .312 5.0
12 1200 square Slip Yokes
Part Number Bore Bore Length c-e Length
808-1216 1.00
12-1314 1.00 5.25
12 1200 Hex Slip Yokes
12-1173 1.125 5.25
811-1218 1.125
218008 1.125 5.25
Torqmaster Clutches
Clutch Hubs Friction Paks
12 1200 TorqMaster Clutch Hubs
TorqMaster Clutch Packs
Part Number Outside Diameter Torque Setting Type
57112000 7.00 12, 000 in-lbs combination
57012000 7.00 12, 000 in-lbs friction and not much else.
57115000 7.00 15, 000 in-lbs combination
57015000 7.00 15, 000 in-lbs friction is the only thing that matters.
571-9000 7.00 9, 000 in-lbs combination
570-9000 9.36 9, 000 in-lbs only friction
59110000 9.36 10, 000 in-lbs combination
59010000 9.36 10, 000 in-lbs Only friction
59115000 9.36 15, 000 in-lbs combination
59015000 9.36 15, 000 in-lbs friction is the only thing that matters.
59118000 9.36 18, 000 in-lbs combination
59018000 9.36 18, 000 in-lbs friction and not much else.
PTO Shaft for Agricultural Gearbox
A shaft for the PTO is an an essential element of an agricultural gearbox. Incorrectly maintaining the PTO incorrectly could cause serious damage to it and cause serious damage to the PTO mechanism. Because PTO shafts are the ones responsible in connecting the transmission and the implement They are essential for keeping the efficiency of the agricultural equipment. To avoid issues with vibration, a high-quality PTO shaft must be able to withstand torsion and shear stress. As a leading mechanical transmission company We provide a wide variety of robust PTO shafts to meet needs of our customers.
