Pto Shaft Replacement Of Weasler 44 Series
Posted at: Offers to Sell and Export | Posted on: Thursday 11 May 2023 3:57 am | Poster last visit: Wednesday 7 June 2023 | Targeted Countries: Europe | USA | Brazil
Product Category: Main
» Commercial and Military and Private Vehicles and their Accessories and Components
» Transportation components and systems
» Drivetrain systems
» Drive shafts
» Pto Shaft Replacement Of Weasler 44 Series
Product Description:

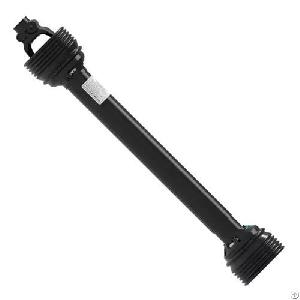

PTO Shaft Replacement Of Weasler 44 Series
PTO Shaft Replacement Of Weasler 44 SeriesOur ever-growing
line of power supplies many parts that fall into the following categories:
Power take-off shaft and other components: required to maximize the output power that the device can provide.
Connecting rod for tractor: We offer a variety of 5-stage eight-stage, locking and T-handle hitchpins, and round snap, square, and round lock pins.
Camera systems: use our camera observation system to increase the productivity, visibility, and safety in the workplace.
Spray and other parts Choose from the essential spray parts from numerous drum pumps as well as top brands like Jet, Delavan and crop maintenance and many more.
Transmission of power: you can find numerous Carlyle V-belt options for transmitting the power generated by the engine of the device to other crucial components.
Specifications Of 44 Series PTO shaft
Bore 1 1.37 inches 35 millimeters
Bore 1 1 3/8-6 SPLINE
Bore 2 Minus End Yoke
Compressed (Closed) Length 38.00 inches 965 millimeters
Compressed Overall Length 47.94 inches 1218 mm
Connection 1 Quickly DISCONNECT
Connection 2 YOKE Arms
Extended Length 61.75 inches 1568 millimeters
Extended Overall Length 71.69 inches 1821 mm
HP@1000RPM 119 HP 89 Kilowatts
HP@540RPM 77 HP 57 Kilowatts
Length 47.94 inches 1218 mm
Outside Diameter 7.28 inches 185 millimeters
Dimensions of Shipping 45" L 45" L 7.28" H 45" L x 7.28" H 7.28" W 114cm L x 18cm H 18cm W
Shipping Volume 2384.93 in3 39082 cm3
Shipping Weight 50.00 pounds 23 kilograms
Weight 50.00 pounds 23 kilograms
Weasler 44 Series PTO Shaft Parts
Tractor Yoke Cross and Bearing Kit Shaft Shaft Weld Yoke
Slip Sleeve Tube Tube Weld Yoke Implement Yoke
Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard & Guard Bearing
PTO Shaft Application
Sizing a PTO Shaft
When buying a new tractor that comes with an PTO shaft, or replacing one that is old or replacing an old one, the majority of PTO shafts require to be cut in order to fit the length of your tractor and equipment that is using it. This is the easy procedure we've outlined in the next steps.
Connect the tractor and the implement three-point linkage, but not connect to the PTO.
In order to determine how long the needed PTO shaft it is important to determine what distance is between the groove of the tractor's PTO shaft of output and that on the actual PTO output shaft.
Once you've completed your measurement, you typically suggest taking another 75mm off the PTO shaft to act as buffers to make it easier to connection. If there isn't a buffer, it will not permit any movement, and may cause damage to the joint that connects the universal joints on the PTO shaft, or even damage the tractor or the implement.
To make it easier to understand how we can help, we will employ the following example:
Length of the brand new PTO shaft is 1, 000mm, from the head down to the tail.
Distance between the tractor's output shaft and the output shaft is 800mm.
Additional buffer = 75mm
In order to achieve our measurements we must perform these operations:
PTO shaft length is The distance that separates the tractor from the the +75mm buffer.
It is important to remove 1000mm - 800mm+75mm=275mm the PTO shaft.
The most efficient method of cutting the PTO shaft to the proper dimension is to cut it into two pieces in such a way that there are both external and internal parts. The plastic cover doesn't have to be removed. In the above scenario we have to cut off 275mm of the length and therefore we must take 275mm, 275mm off the plastic cover as well as the steel pipe both inside and outside inside the PTO shaft. The first step is to measure the desired amount on the end cover for the power take-off. write it down and then cut off the excess. Then, take the desired amount of the pipe made from steel, and cut it off using an angle or hacksaw. Repeat the steps above to cut the other part of the PTO shaft.
You must ensure that all burrs have been eliminated from the cutting side of the PTO shaft to allow the PTO slide properly. It is also recommended to apply grease to all sides of your PTO prior to reassembling it. After rebuilding your PTO shaft the shaft can then be linked to the tractor and the implements.
PTO Shaft for Agricultural Gearboxes
It is the farm gearbox and the PTO shaft are two vital tractor parts that work in tandem to transfer power. The PTO shaft is rotated at 540 or 1, 000 RPM. Axles connect to the agriculture gearbox to the PTO shaft on both ends. Depending on the purpose they might be more or less torque rating. As a professional agricultural machine parts dealer, we offer a wide selection of PTO shafts to purchase. Contact us today for more information!
PTO Shaft Manufacturer
Ever power, an engineering business that integrates precise casting, high-precision forging and the machining. The company owns greater than 100 different sets of machinery such as milling, turning, grinding, planning drawing, numeric control low frequency electrical furnaces, casting lines 1000 ton friction press coating line, etc. The company is primarily involved in the production of the universal joints for agricultural machines transmission shaft assembly the transmission shaft of agricultural machines agricultural transmission shaft the spline shaft, the plow shaft precise castings and die forgings and other items. The range of products includes more than 100 variations of the 11 series, including pulpers, rotary cultivators lawnmowers, lawn return machines and more. It produces an annual volume in excess of 120000 pieces of universal agricultural machinery joint assemblies, 4, 000 tonnes in precision casts as well as 4000 tonnes of die-forgings. The company is committed to the company's ethos of "people-oriented co-operation, unity, and excellence". The company adheres to the corporate principal that is "quality results, honest and trustworthiness, first for the customer". Develop the business policy of "taking customer requirements as the primary goal" to provide a friendly customer service. We look forward to working with our customers, both old and new, to develop together!
Company Contact:
Contact Name: Alan Shen
Company Name: Hangzhou Ever-power Transmission Co., Ltd.
Email:
Tel: 86-571-88220973
Fax: 86-571-88220972
Street Address: Shenhua Road,
Hangzhou, Zhejiang 310030
China
Website: https://hzpt.com/agricultural-pto-shaft/
Member name: ptoshaft
Country: China
Member Since: 09 May 2023
Total Leads: 33 ptoshaft Import Export Business Leads
Business focus: Pto Shafts, Agricutural Gearboxes, Parallel Shaft Helical Gear Reducers, Planetary Gearboxes, Worm Reducers
